(New) Machifit CNC Router Rotational Rotary Axis CNC Machine

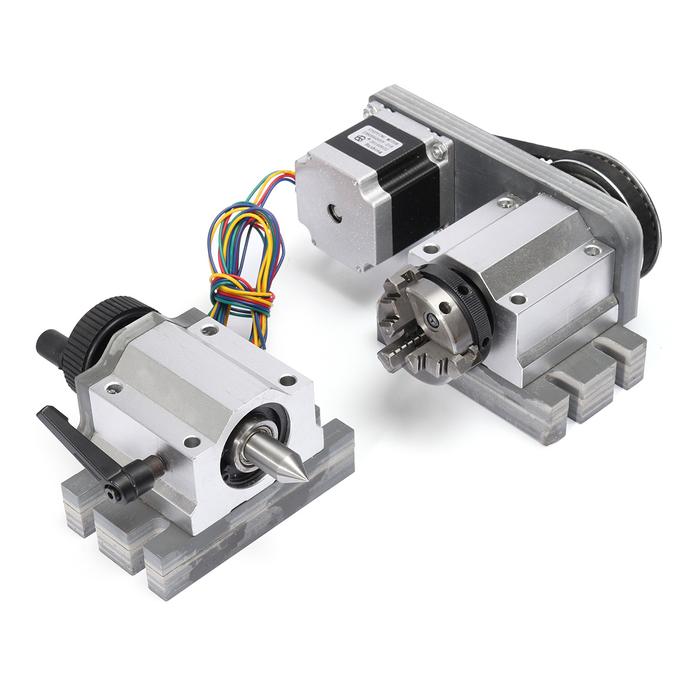

Machifit CNC Router Rotational Rotary Axis CNC Machine Accessory Tailstock for 4th-Axis

Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari Tergantung Stok Dan Posisi Gudang. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari


Description:

CNC Router Rotational Rotary Axis CNC Machine Accessory Tailstock for 4th-Axis

Specification:

Chuck type 50mm self-centering 3 Claw Chuck
Chuck center height 49mm
Transmission ratio 1:4 (1200 pulses / revolution) synchronization gear reducer
Motor 3A 4 lead 57 stepper motor (1.8 Degree Step Angle)
dust cover Stainless steel
Processing load 30KG
Anodized rust treatment
4-pin connector 1 = A +, 2 = A-, 3 = B +, 4 = B-
Dimension 180x105x100mm
MACH3 setup instructions: 1 degree required Pulse
The formula is: 360 / subdivision stepping angle * Drive * Transmission ratio / 360 = MACH3 Pulse
, €
CNC Machine Accessory Tailstock for 4th-Axis:
Frame Material Aluminum Alloy
Outter Dimension(mm) 110x98x100mm
Center Height 49mm
Anti-rusty coating cover
rotary handwheel 3.0 inch
Tailstock stroke limit & position self-lock

Package Included:

1x Stepping Motor(Come with 3 Jaw Chuck and Belt)
1x Tailstock
2x Lock Rods

Notice:

1.Please allow a bit error due to manual measurement. Pls make sure you do not mind before you bid.
2.The color may have different as the difference display, pls understand.


SKU-1154485
