Arduino Micro Servo Motor SG90/ MG90S (7400) - plastic 180

Arduino Micro Servo Motor SG90/ MG90S (7400)

Terdapat 4 macam tipe micro servo motor tipe ini

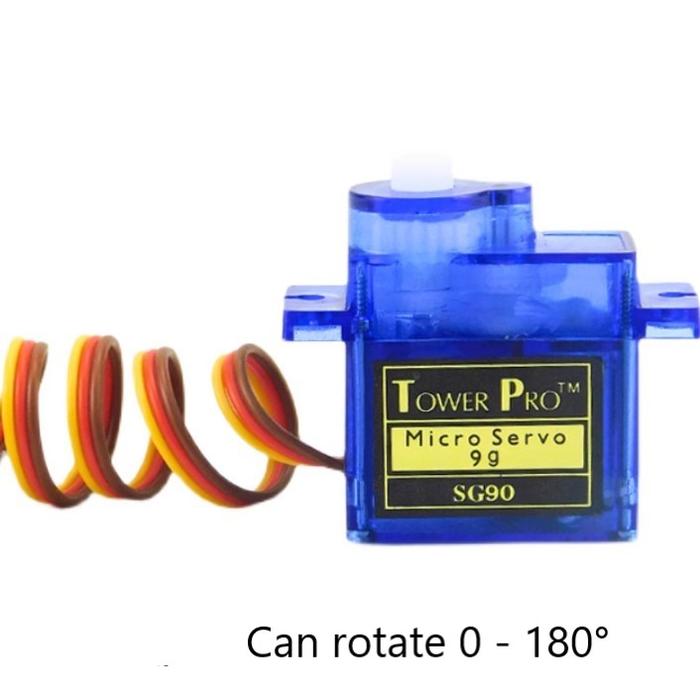

1. SG90 180° plastic teeth
2. SG90 360° plastic teeth
3. MG90S 120° metal teeth
4. MG90S 360° metal teeth

Keterangan kabel :
Brown : connect to negative pole
Red : connect to positive pole
Brown : signal

Keterangan SG90
Size : 23x12.2x29mm
Product weight : 9g
Working torque : 1.6kg.cm (4.8V)
Reaction speed : 0.12 seconds/ 60 degrees (4.8V)
0.10 seconds/ 60 degrees (6.0V)
Operating temperature : -30 -+ 60 degreed celsius
Dead zone setting : 5 microseconds
Servo type analog steering gear
Operating voltage : 3.5V-6V
Structural material : plastic gear

The attachment contains : three-function swing arm, fixing screws, cord length 25cm

Keterangan : MG90S
Size : 22.8x12.2x28.5mm
Product weight : 12g
Working torque : 2KG/cm
Reaction speed : 0.11 seconds/60 degrees (4.8V)
Operating temperature : 0 - 55 degrees
Dead zone setting : 5 microseconds
Plug type : compatible with JR and FUTABA
Servo type : analog servo
Operating voltage : 4.8V
Structural material : metal copper teeth
The attatchment contains : Acc such as steering wheel, cable length 25cm, fixing screws, shock-absorbing rubber sleeves and aluminium sleeves
