Audio Amplifier Power Filter Three-stage EMI EMC AC filter(M2035) - 4A

Audio Amplifier Power Filter Three-stage EMI EMC AC filter (M2035)

Name : Three-level audio amplifier EMI power filter
Input voltage : single-phase AC110-250V
Output voltage : single-phase AC110-250V
Load rated current : 4A-20A
Input port : three-wire 7.62 socket input
Output port : second 7,62 socket output

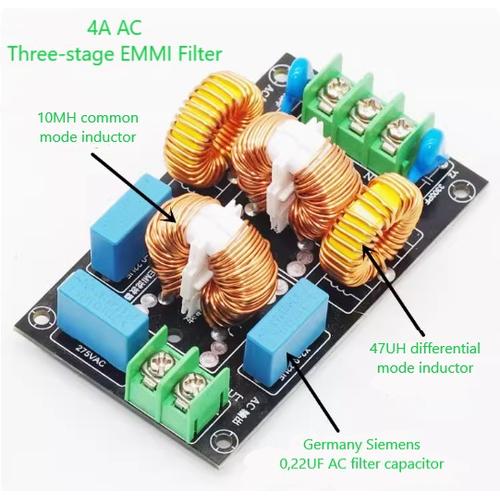

Design feature :
1. One-stage mode filtering and two differential inductors perform differential mode filtering on the AC power supply to suppress mid-and high frequency interference.
2. The first level common mode filter is combined into a common mode filter through the X2 capacitor and common made inductor
3. Three-stage common mode filtering. Due to the used of two-stage (also called two stage) filtering, the effect of filtering noise is better. For some user sites, there is a problem of fast transient group pulse interference with a repetition frequency of several thousand Hz.
