Long Axis 2418/310 Brushless Motor Forward & Reverse PWM (310CX)
Rp75.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Dinamo kecil

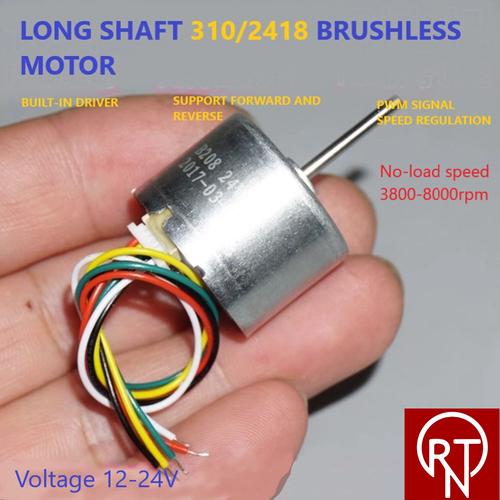

Long Axis 2418/310 Brushless Motor Forward & Reverse PWM (310CX)
Original B2418 DC brushless motor, similar in size to ordinary brushed 310 motors, this shaft length is 16.3mm, built-in brushless drive circuit, the motor supports forward and reverse rotation, PWM signal speed regulation around 10-20khz, with speed Signal feedback output, signal feedback needs a pull-up resistor, and speed regulation forward and reverse.
The nominal voltage of the motor is 24V, and the measured operating voltage is 8V-24V. It can work normally. The high voltage has high speed, the low voltage has low speed, and the voltage can also be adjusted within a certain range. PWM signal speed adjustment can support wider speed range adjustment. speed.
The following are the measured speeds of the motor at the highest no-load operation under different voltages:
Voltage: 8V, current 0.02A, no-load maximum speed 2400 rpm.
Voltage: 12 V, current 0.03A, maximum no-load speed 3800 rpm.
Voltage: 24 V, current 0.04A, no-load maximum speed 8000 rpm.
Note: The positive and negative poles of the DC brushless motor cannot be connected reversely, and if they are connected incorrectly, they will burn. Please refer to the introduction diagram to mark the corresponding wiring at the left and right positions.
Original B2418 DC brushless motor, similar in size to ordinary brushed 310 motors, this shaft length is 16.3mm, built-in brushless drive circuit, the motor supports forward and reverse rotation, PWM signal speed regulation around 10-20khz, with speed Signal feedback output, signal feedback needs a pull-up resistor, and speed regulation forward and reverse.
The nominal voltage of the motor is 24V, and the measured operating voltage is 8V-24V. It can work normally. The high voltage has high speed, the low voltage has low speed, and the voltage can also be adjusted within a certain range. PWM signal speed adjustment can support wider speed range adjustment. speed.
The following are the measured speeds of the motor at the highest no-load operation under different voltages:
Voltage: 8V, current 0.02A, no-load maximum speed 2400 rpm.
Voltage: 12 V, current 0.03A, maximum no-load speed 3800 rpm.
Voltage: 24 V, current 0.04A, no-load maximum speed 8000 rpm.
Note: The positive and negative poles of the DC brushless motor cannot be connected reversely, and if they are connected incorrectly, they will burn. Please refer to the introduction diagram to mark the corresponding wiring at the left and right positions.
