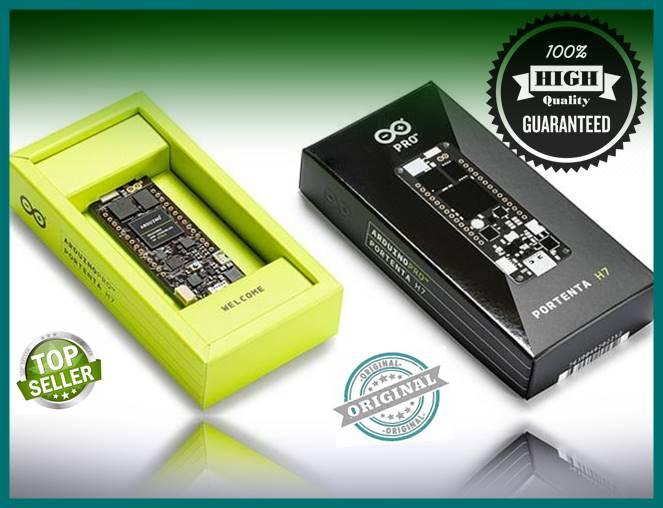

Arduino Portenta H7

The Arduino Portenta H7 is based on the STM32H747 microcontroller, XI series. Use Portenta when performance is key, among other cases, we envision it to be part of: High-end industrial machinery Laboratory equipment Computer vision PLCs Industry-ready user interfaces Robotics controller Mission-critical devices Dedicated stationary computer High-speed booting computation (ms) Tech specs: MICROCONTROLLER STM32H747XI dual Cortex-M7+M4 32bit low power Arm MCU (datasheet) RADIO MODULE Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth 5.1 BR/EDR/LE (datasheet) SECURE ELEMENT (DEFAULT) NXP SE0502 (datasheet) BOARD POWER SUPPLY (USB/VIN) 5V SUPPORTED BATTERY Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger) CIRCUIT OPERATING VOLTAGE 3.3V CURRENT CONSUMPTION 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON) DISPLAY CONNECTOR MIPI DSI host amp; MIPI D-PHY to interface with low-pin count large display GPU Chrom-ART graphical hardware Accelerator TIMERS 22x timers and watchdogs UART 4x ports (2 with flow control) ETHERNET PHY 10 / 100 Mbps (through expansion port only) SD CARD Interface for SD Card connector (through expansion port only) OPERATIONAL TEMPERATURE -40 °C to +85 °C MKR HEADERS Use any of the existing industrial MKR shields on it HIGH-DENSITY CONNECTORS Two 80 pin connectors will expose all of the board #39;s peripherals to other devices CAMERA INTERFACE 8-bit, up to 80 MHz ADC 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS) DAC 2× 12-bit DAC (1 MHz) USB-C Host / Device, DisplayPort out, High / Full Speed, Power delivery
