Introduction
RF-450 is a RF Signal Generator with frequency range from 100kHz to 150MHz.
At Range "F" (Press "F* on the front panel), when adjust the frequency knob to its highest,
450 MHz It can be obtained by third harmonic of 150MHz.
External modulation frequency can be received from 50Hz to 20kHz ‘ While internal modulation frequency fixed at I kHz.
It could teaching, producing and maintaining. And also be used to measure
The Sweep Linearity of Spectrum Analyzer.

Feature :
1) Wide frequency range: 100kHz— 150MHz
2) Low distortion of 1 kHz internal signal provide stable
amplitude-modulated RF output signal.
3) External input signal can be set between 50Hz-20kHz

Specifications:
1) Frequency Range:
A: 100kHz-300kHz
B: 300kHz-1MHz
C: 1MHz-3.2MHz
D: 3MHz- 10MHZ
E: 10MHz-35MHz
F: 32MHz-150MHz (The third harmonic of 150MHz to 450MHz)

2)Frequency accuracy: ± 3%
3) RF output : more than or equal 100mVrms (when frequency less than or equal 35MHz)
4) RF output level control: 1mV-100mV (measured at output point)
5) Internal modulation output signal: > 2mVrms. 1kHz ±2%
6) External modulation input signal: more tahn or equal 1Vrms. 50Hz-20KHz
7) Power supply: AC220V ± 10% 50Hz/60Hz
8) Dimension: 142(W) X 233(D) X 197(H)mm
9) Weight: Approx. 3.5KG

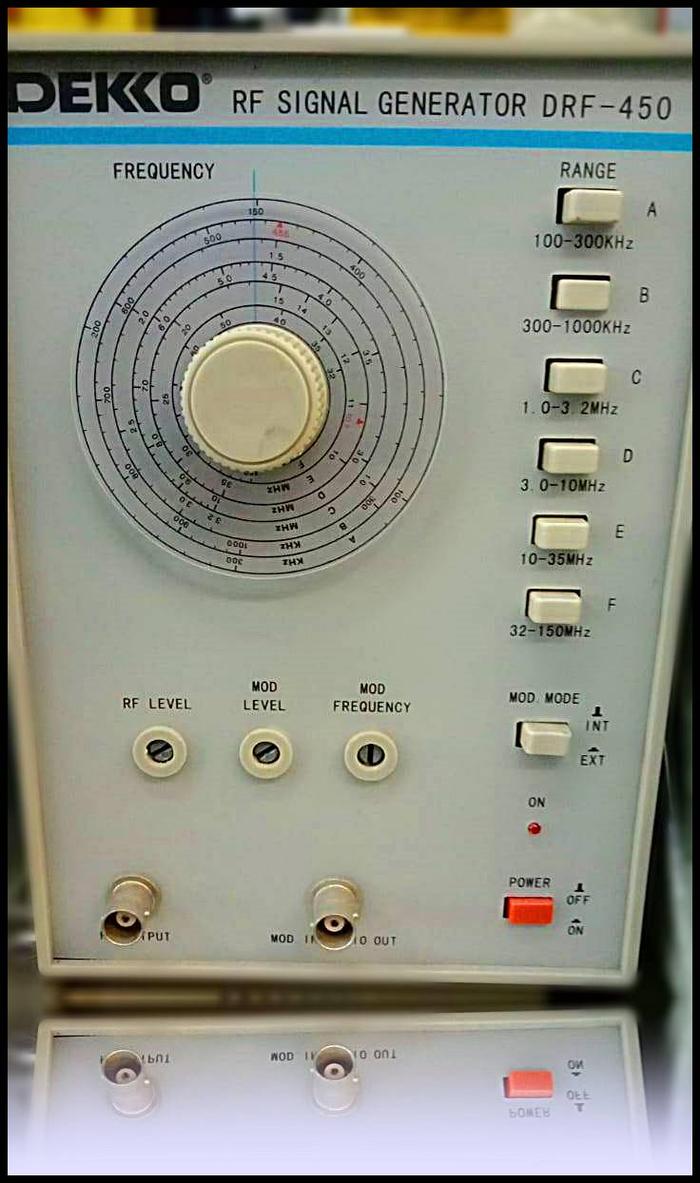

Functions of front & rear panels
1) Frequency adjustment knob
2) Power on indicator
3) Power switch. Push on.
4) Level adjustment knob of Internal modulation signal
5) Input/output selection of Internal & external modulation signal
6) Frequency selecting sw itches(A-F)
7) Internal/external modulation signal selection
8) RF output signal level switch.
9) RF output
10) Power Socket (AC line)
11) Fuse and rated value
