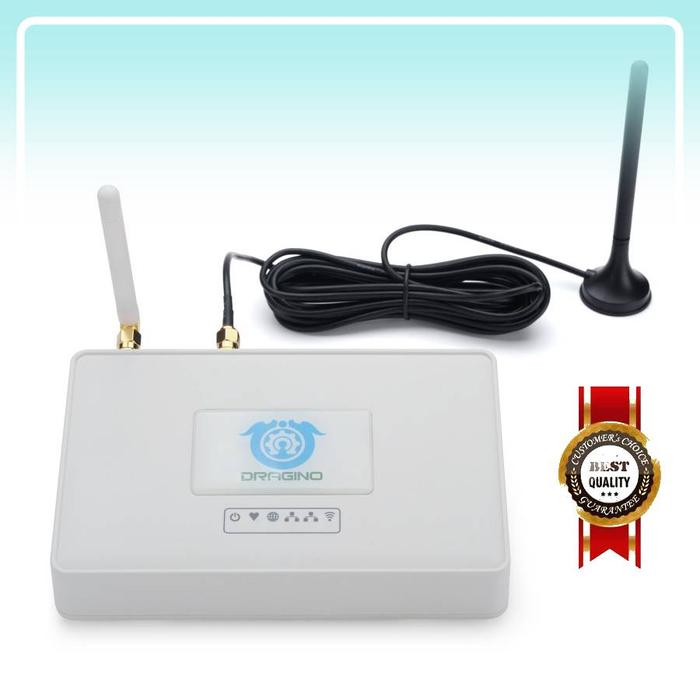

Dragino LG308 Pico Gateway 915 Mhz Indoor LoRaWAN

The LG308 is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. The LG308 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRa concentrator + 2 x SX1257, which provide 10 programmable parallel demodulation paths. LG308 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network. Features: Open Source OpenWrt system Managed by Web GUI, SSH via LAN or WiFi Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module Emulates 49x LoRa demodulators LoRaWAN Gateway 10 programmable parallel demodulation paths Remote.it remote management. Applications: Smart Buildings amp; Home Automation Logistics and Supply Chain Management Smart Metering Smart Agriculture Smart Cities Smart Factory Specifications: LoRa Spec: 1 x SX1301 + 2 x 1257 LoRa Tranceiver General Specification: 10M/100M RJ45 Ports x 2 1 x 2.4G WiFi (802.11 bgn) 1 x USB host port 1 x Mini-PCIe Interface Power Input: 12v, 1A Cellular 4G LTE (optional): Quectel EC25 LTE module ( Clink the link to find the right model for your region) Micro SIM Slot Internal 4G Antenna + External 4G Sticker Antenna. Up to 100Mbps downlink and 50Mbps uplink data rates Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage MIMO technology meets demands for data rate and link reliability in modem wireless communication systems Datasheet : https://www.dragino.com/downloads/index.php?dir=LoRa_Gateway/LG308-LG301/
