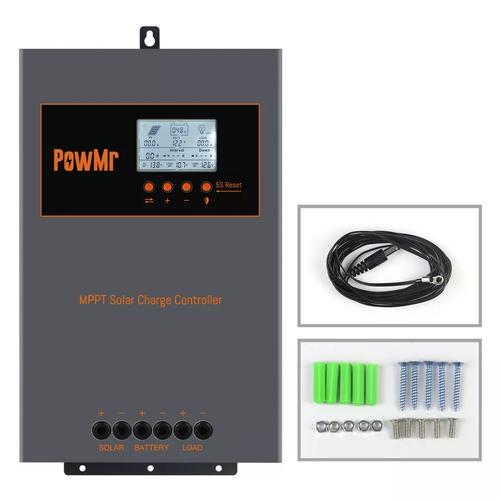

Solar Charge Controller MPPT Powmr 100A 12V 24V 36V 48V

Rp3.009.500

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: ETALASE 2

Please read the specification carefully before install

Model POW-K48100A
Maximum power current 100A
Load output power 40A
Installation Lin（mm2）20
Installation Line(AWG)4-6#
Weight4KG
Dimensions400*220*120(mm)

-Project 12V system, 24V system, 48V system
-Battery float voltage13.8V, 27.6V, 55.2V,
-Battery (under voltage) protection 10.6V, 21.2V, 42.4V,
-Battery (under voltage) recovery voltage 12.6V, 25.2V, 50.4V,
-System load loss: ≤13mA Loop Buck: ≤100mV -Operating Temperature: -10℃~60℃ Storage Temperature: -30℃~70℃
-Humidity requirements: ≤90％, No condensation Temperature compensation: -4mV/Cell/℃
-Maximum open circuit voltage of the solar panel18-72V, 36-108V, 72-144V,
-Solar panels maximum open circuit voltage (V)≤96V, ≤144V, ≤144V,
-Battery AH >200AH, >400AH, >600AH
-MAX.PV input power 60-1300W, 60-2500W, 60-5000W
