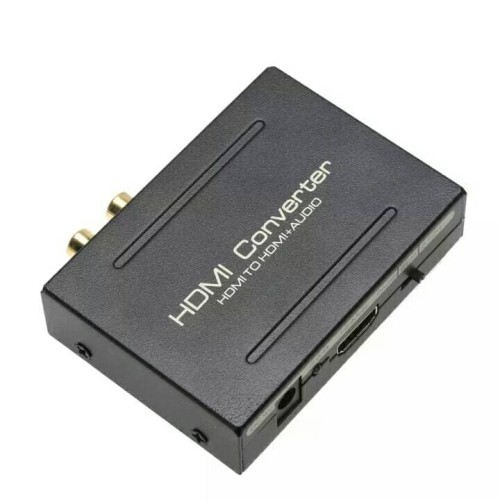

Hdmi to Hdmi + audio

Features:
1. Easy to install.
2. High quality and compatibility in Product Category.
3. Supports Apple TV and various Blu-ray player.
4. One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output.
5. Output audio support : SPDIF+R/L analog Audio Output.
6. SPDIF output : support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond)
7. Input Resolution : up to 1080P(50/60Hz)/720P/480P.
8. LED indication.

Specification:
1. HDMI resolution : 1080P/1080i/720p/576p/576i/480p/480i
2. Support video color format : 24bit/deep color 30bit,36bit
3. Audio output : L/R+SPDIF
4. Max bandwidth 225MHz
5. Max baud rate 6.75Gbps
6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
7. Input/Output DDC signal 5Volts p-p (TTL)
8. Input cable distance. 15m AWG26 HDMI standard cable
9. Output cable distance 20m AWG26 HDMI standard cable
10. Max working current : 500mA
11. Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output : DC5V/1A
12. Operating Temperature range: -15 to +55
13. Operating Humidity range 5 to 90%RH (No Condensation)
14. Power supply : DC 5V/1A
15. Product size: approx. 85*68*20mm/3.34*2.67*0.78''
16. Net weight: approx. 144g
17. Gross weight: approx. 145g
18. Plug type: EU

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Apa yang ada di dalam kotak
1 x HDMI Converter
1 x DC 5V Power Adaptor
1 x User Manual
1 x Hdmi cable

keterangan fungsi : https://youtu.be/3iCNrUSyomQ
