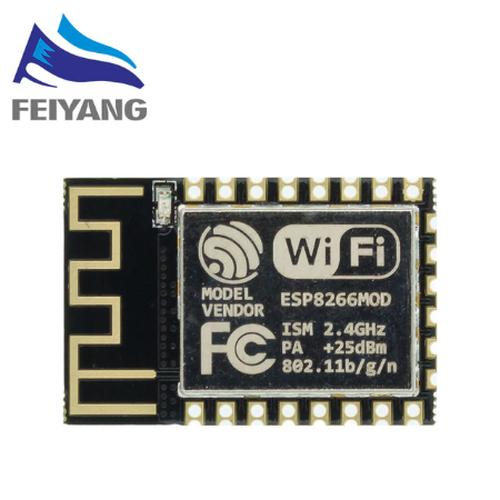

New version ESP-12F ESP8266 remote serial Port WIFI wireless module

ESP-12F
ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification , Have been greatly improved! For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient, More extensive!

Standards Certification: FCC / CE / TELEC
Wireless standards: 802.11 b / g / n
Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
Working Current: Average: 80mA
Operating temperature: -40 ° ~ 125 °
Storage temperature: Nomal temperature
