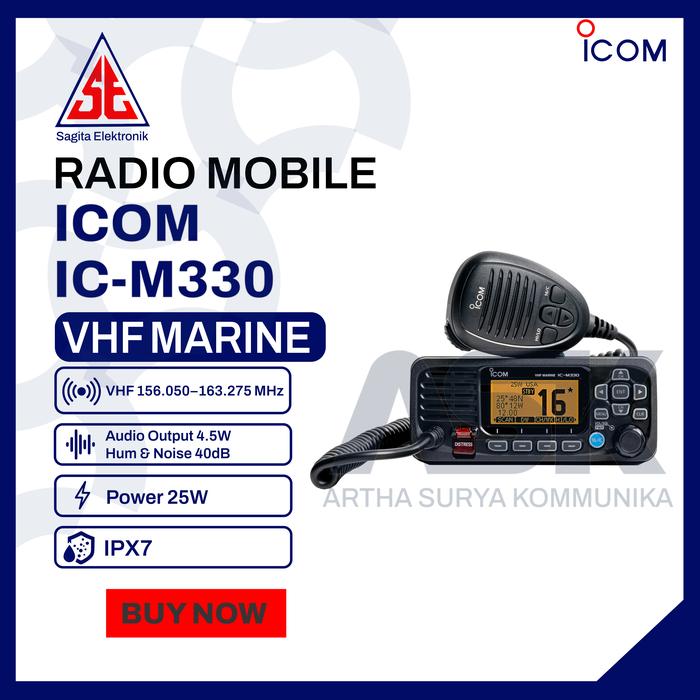

RIG MARINE ICOM IC-M330 VHF / ICM330 ICM 330 IC M330 M 330

Features :
- Ultra Compact Body
- Dynamic, Clear Audio
- Built-in Class D DSC
- Intuitive Operation with Icom Marine User Interface
- Easy-to-Read Full Dot-Matrix Display
- IPX7 Submersible Construction(1m depth of water for 30 minutes)
- AquaQuake
- Common NMEA interface for external GPS/NAV connection
- MA-500TR Class B AIS transponder compatible
- Tag scan and favorite channel
- Dual/tri-watch
- Priority scan
- Display and keypad backlighting
- External speaker connection
- Weather channel with weather alert
- Supplied hand microphone, HM-235B
- 3-digit or 4-digit channel display selectable

Specs :
Frequency Range :
- RX : 156.050163.275MHz
- TX : 156.025161.600MHz
- CH70 : 156.525MHz

Usable Channel Groups : USA, CAN, INT, WX channels
Type of Emission : 16K0G3E(FM), 16K0G2B(DSC)
Power Supply Voltage : 13.8V DC nominal (11.7V15.9V DC)
Current Consumption :
- TX 25W : 5A
- RX AF max. : 1A
Operating Temperature : -20C to +60C
Antenna Impedance : 50(SO-239)
Dimensions (WHD) :156.566.5110.1mm
(Projections not included)
Weight : 730g; 1.6lb
NMEA formats (in/out formats) :
- IN : RMC, GGA, GNS, GLL, VTG
- OUT : DSC, DSE, RMC, GSA, GSV


Receiver :
Sensitivity : 13dB typ.(12dB SINAD)(Main), 5dB emf typ.(1% BER)(DSC)
Squelch Sensitivity : Adjacent Channel Selectivity : >70dB(Main), >73dB emf(1% BER)(DSC)
Spurious response : >70dB(Main), >73dB emf(1% BER)(DSC)
Intermodulation Rejection : >70dB(Main), >68dB emf(1% BER)(DSC)
Hum and Noise Ratio : >40dB
Audio Output Power (at 10% distortion,4 load) : 4.5W typ.


Transmitter :
Output Power : 25W/1W
Max. Frequency Deviation : 5.0kHz
Frequency tolerance : 5ppm
Spurious emissions (H/L) :
