Jual HIOKI PD3129 PHASE DETECTOR PHASE CHECKER JAPAN original
Rp3.500.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: HIOKI
Deskripsi HIOKI PD3129 PHASE DETECTOR PHASE CHECKER JAPAN BERGARANSI

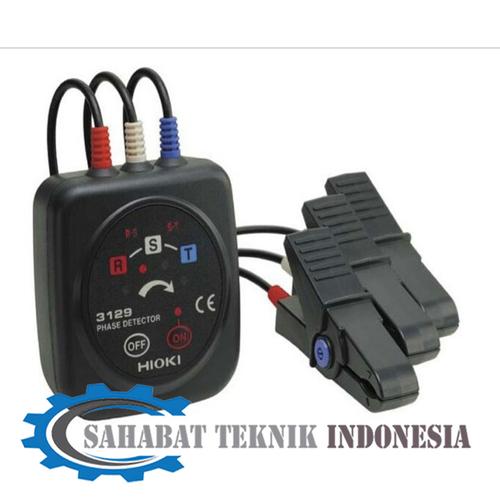

Phase Detector HIOKI 3129, Phase Rotation Meter with Easy-to-Read Arrow and Non-Metallic Contact Clips for 70V to 600V Lines
Key Features
Simply clip clamps onto wire insulation
Green LED arrow clearly shows phase direction, perfect for visual reports
Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
Intermittent beeps signal positive phase; continuous tone signals reverse phase
Magnetic base allows the instrument to be secured on a distribution panel
Specification:
Functions
Phase detection (positive and negative)
Voltage detection method
Static induction
Voltage range
70 to 600 V AC (50/60 Hz) (sine wave,continuous input)
Frequency range
45 Hz to 66 Hz
Object to be connected
2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring
Display
Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off
Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply
R6P (AA) manganese battery 2, Continuous use: 70 hr
Dimensions and mass
70 mm (2.76 in)W 75 mm (2.95 in)H 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft)
Phase Detector HIOKI 3129, Phase Rotation Meter with Easy-to-Read Arrow and Non-Metallic Contact Clips for 70V to 600V Lines
Key Features
Simply clip clamps onto wire insulation
Green LED arrow clearly shows phase direction, perfect for visual reports
Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
Intermittent beeps signal positive phase; continuous tone signals reverse phase
Magnetic base allows the instrument to be secured on a distribution panel
Specification:
Functions
Phase detection (positive and negative)
Voltage detection method
Static induction
Voltage range
70 to 600 V AC (50/60 Hz) (sine wave,continuous input)
Frequency range
45 Hz to 66 Hz
Object to be connected
2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring
Display
Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off
Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply
R6P (AA) manganese battery 2, Continuous use: 70 hr
Dimensions and mass
70 mm (2.76 in)W 75 mm (2.95 in)H 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft)
