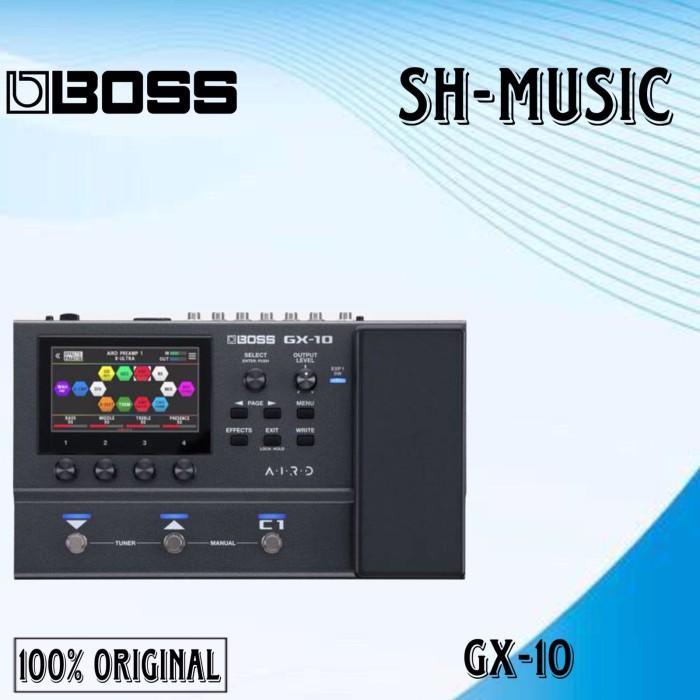

Sedia Boss GX10 GX-10 Effects Guitar Pedal Processor Guitar Pedal Boss Gx 10

SpecificationsSampling
Frequency 48 kHz
AD Conversion 24 bits + AF method
DA Conversion 32 bits
Processing 32-bit floating point
Effects 170 Types
Maximum Number of Effects 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
*depending on the circumstances
Memories 198 (User) + 99 (Preset)
Phrase Loop 38 sec. (MONO) 19 sec. (STEREO)
Tuner Internal Detection+/-0.1 cent
Nominal Input Level INPUT: -10 dBu RETURN: -10 dBu
Maximum Input Level NPUT: +7 dBu RETURN: +7 dBu
Input Impedance INPUT: 1 M ohm RETURN: 1 M ohm
Nominal Output Level OUTPUT (L/MONO, R): -10 dBu PHONES: -10 dBu SEND: -10 dBu
Output Impedance OUTPUT (L/MONO, R): 1 k ohm PHONES: 44 ohms SEND: 1 k ohm.
Recommended Load Impedance OUTPUT (L/MONO, R): 10 k ohms or greater PHONES: 44 ohms or greater SEND: 10 k ohms or greater
Controls DOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,
PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,
EXP1 pedal
Display Color Graphic LCD (480 x 272 dots) Touch screen
Connectors INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type
CTL2,3/EXP2 jack
USB COMPUTER port: USB Type-C
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack
Power Supply AC adaptor
Current Draw600 mA
Power consumption when in OFF mode (when the power automatically turns off)0.0 W
Accessories AC adaptor (PSB-1U + AC Cord Set)

Bluetooth Audio MIDI Dual Adaptor (Model BT-DUAL)
Wireless MIDI Expression Pedal: EV-1-WL
Wireless Foot Switch: FS-1-WL

Size and Weight
Width300 mm 11-13/16 inches
Depth183 mm 7-3/16 inches
Height74 mm 2-15/16 inches
Maximum height 96 mm 3-3/4 inches
Weight2.2 kg 4 lbs 14 oz
