KEM4RI. Driver Motor Stepper MACH 3 MACH3 CNC 5 Axis USB Breakout Board BoB
Rp73.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
MACH3 Breakout Board ini menggunakan Port LPT DB25 konektor ya.
Port USB nya digunakan sebagai power untuk menyalakan boardnya saja.

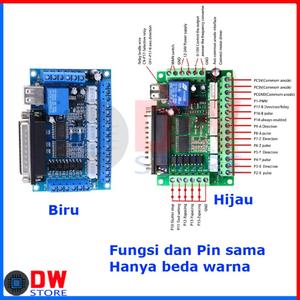

PCB Biru dan Hijau sama.
Specifications:
Size: about 89.7 x 68.5 x 19.5mm (3.53 x 2.69 x 0.76)
Feature:
* MACH3 software supports WIN XP system.
* Support of MACH3 and other computer software support for parallel port control.
* USB power supply and peripherals powered phase separation to protect computer security.
* Peripheral wide voltage input,12-24V, and anti-reverse function.
* P1 as PWM outputs can be controlled with optocoupler input spindle governor.
* Can be accessed by a common cathode or common anode input level to 5V drive.
* All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
* Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
Package include:
1x 5 Axis CNC Match3 Board
1x USB Cable
Port USB nya digunakan sebagai power untuk menyalakan boardnya saja.
PCB Biru dan Hijau sama.
Specifications:
Size: about 89.7 x 68.5 x 19.5mm (3.53 x 2.69 x 0.76)
Feature:
* MACH3 software supports WIN XP system.
* Support of MACH3 and other computer software support for parallel port control.
* USB power supply and peripherals powered phase separation to protect computer security.
* Peripheral wide voltage input,12-24V, and anti-reverse function.
* P1 as PWM outputs can be controlled with optocoupler input spindle governor.
* Can be accessed by a common cathode or common anode input level to 5V drive.
* All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
* Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
Package include:
1x 5 Axis CNC Match3 Board
1x USB Cable
