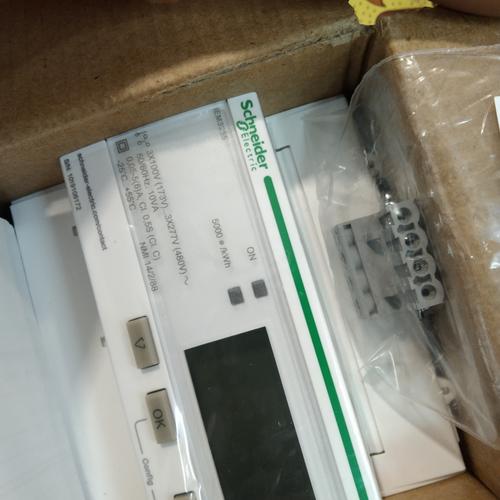

Schneider Electric Kwh Energi Meter iEM3255 CT Modbus A9MEM3225-TERA

[Deskripsi] DIN rail KWh meter untuk sirkuit fase tunggal hingga 63A. [Spesifikasi] 1. range : Acti 9 2. range of product : Acti 9 iEM3000 3. product or component type : Energy meter 4. poles description : -3P -1P + N -3P + N 5. type of measurement : -Active and reactive energy -Active and reactive power -Current -Voltage 6. metering type : Active, reactive, apparent energy (signed, four quadrant) 6. device application : -Multi-tariff -Sub billing -Partial meter 7. accuracy class : -Class 0.5S active energy conforming to IEC 62053-22 -Class 0.5S active energy conforming to IEC 61557-12 -Class C active energy conforming to EN 50470-3 8. input type : External CT 1 A or 5 A 9. [In] rated current : 5A, 1A 10. rated voltage : -100…277 V -173…480 V 11. network frequency : 60 Hz, 50 Hz 12. technology type : Electronic 13. display type : LCD display 14. sampling rate : 32 samples/cycle 15. measurement current : 1…32767000 mA 16. maximum value measured : 99999999 MWh 17. tariff input : Tariff (4) 18. communication port protocol : Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V 19. communication port support : Screw terminal block: RS485 17. local signalling : -Green indicator light: power ON -Yellow flashing LED: accuracy checking -alarm: overload -Yellow indicator light: communications are active on the Modbus port (Modbus) 18. number of inputs : 1 digital 0...5 V/11...40 V 24 V DC 19. number of outputs : 1 digital (static) 20. output voltage : 5...40 V DC@50 mA 20. mounting mode : Clip-on 21. mounting support : DIN rail 22. connections - terminals : Screw terminals 16 mm² cable(s) 23. overvoltage category : III 24. pollution degree : 2 25. relative humidity : 5…95 % at 50 °C 26. ambient air temperature for storage : -40…85 °C 27. operating altitude : lt; 2000 m 28. colour : White 29. 9 mm pitches : 10 30. width : 90 mm 31. height : 95 mm 32. depth : 69 mm
