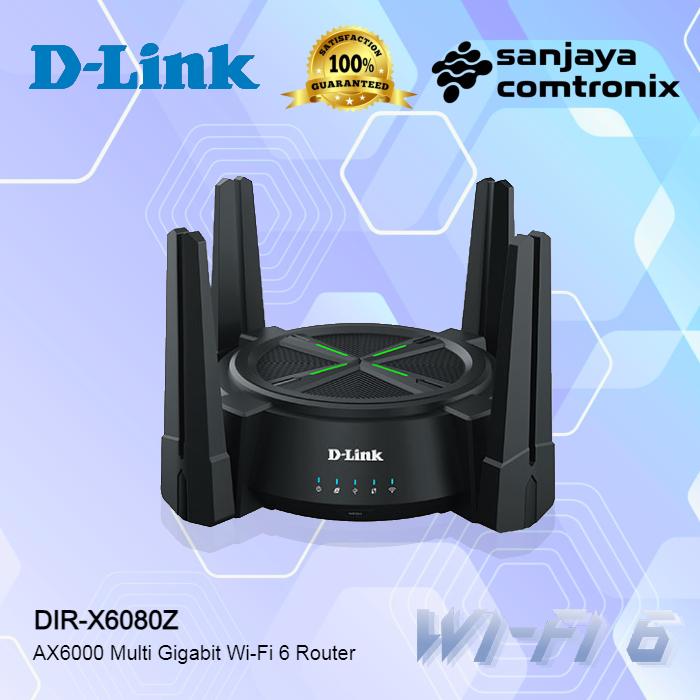

D-LINK DIR-X6080Z EXO AX6000 Multi Gigabit Wi-Fi 6 Router

AX6000 Multi Gigabit Wi-Fi 6 Router

Dual-Band Wi-Fi 6; Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network
congestion.
• Next-Gen 6000Mbps Speeds; Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 6.0 Gbps.
• More Devices with Less Lag; OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.
• 2.5G Multi-Gigabit Port; 1× 2.5 Gbps WAN + 1× 2.5 Gbps LAN 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
• USB 3.0 ; A USB 3.0 Port enables easy file sharing within your network or building private Cloud Storage
• Extensive Coverage; Beamforming, and eight antennas combine to deliver focused reception to devices far away, Also support Easy mesh R2 stander, 3x Unit can cover 500㎡ entirely
• Support High Speed Internet (HSI) , IPTV and OTT services in 4K,HD,SD via multicast and unicast network
• Support D-Link Wi-Fi Connect Apps for easy management , built in Ookla Speedtest to measure the upload and download speed easily
• Extreme powerful Quad-Core CPUs at 2.0GHz ARM Filogic 830
• Support TR069 Remote Access

Standards
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

Data Interfaces
• 1 x 10/100/1000/2500 Gigabit WAN port
• 1 x 10/100/1000/2500 Gigabit LAN port
• 3 x 10/100/1000 Gigabit LAN ports
• 1 x USB 3.0
• 1148Mbps for 2.4GHz band(802.11ax 40Mhz 4x4)
• 4804Mbps for 5.0GHz band (802.11ax 160Mhz 4x4)
• 8 antennas, AX6000

LEDs
• Power
• Internet
• 4 LAN LEDs ( LAN 1 - LAN 4 ) LEDs at LAN ports
• USB
• Wi-Fi
• Mesh/WPS

Buttons • Power ON/OFF Switch, RESET, WPS/MESH
WiFi Encryption • WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
Network Security • Access Control, IP & MAC Binding
Guest Network • 4*5GHz Guest Network /4*2.4GHz Guest Network
WAN Type • DHCP, Static IP, PPPoE
Quality of Service • QoS by Device
Forwarding • Virtual Servers, DMZ, UPnP
Compliance • CE, FCC, MCMC MTSFB TC T007:2020 SHORT RANGE DEVICES - SPECIFICATIONS (SECOND REVISION)

IPv6
• IPv6 and IPv4 dual stack
• IPv6 Tunnels: DS-Lite
• IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6

Mesh • Support 1 Main + 3 Satellite ( 1 +3 )
Mobile App • D-Link Wi-Fi Connect ( Android & IOS ) - Support LAN & WAN Environment
DDR/FLASH • 1G/128MB Single Flash Dual Image
Operating System • PC - Microsoft,MacOS Mobile - Android,Apple iOs, Huawei HarmonyOs

Management
• Support Quick Installation Wizard
• Support configuration saving, and restore to factory configuration
• Support firmware upgrading via WEB GUI
• Support Syslog monitoring
• TR-069/TR-181/TR-143 compliance

Power Supply • 12V/3A power supply
