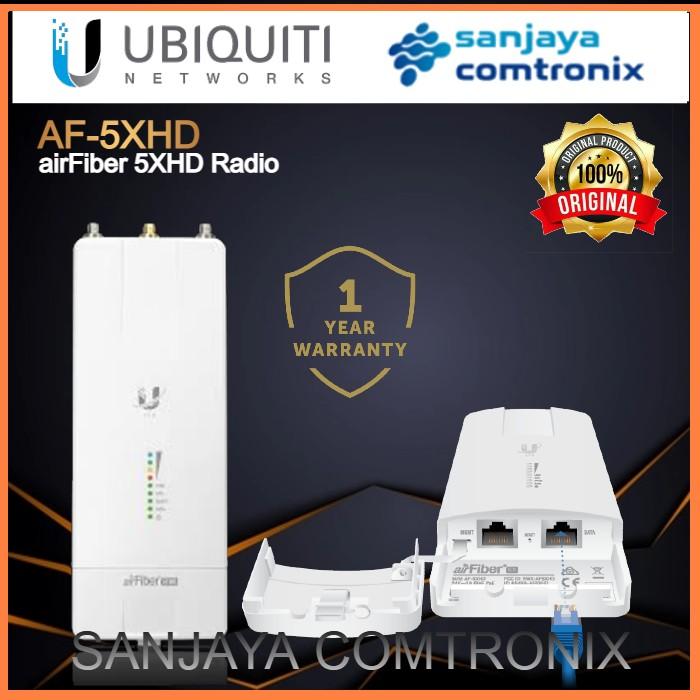

Ubiquiti AF-5XHD airFiber 5X HD 5GHz Carrier Radio w/ LTU Technology
Rp7.130.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: UBIQUITI
Ubiquiti AF-5XHD
airFiber 5X HD The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
- Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
- Weight 0.35 kg (12.3 oz)
- RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
- (1) SMA Weatherproof (GPS)
- GPS Antenna External, Magnetic Base
- Power Supply 24V, 1A Gigabit PoE Adapter (Included)
- Power Method Passive Power over Ethernet
- Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
- Max. Power Consumption 6-12W1
- Supported Voltage Range +18 to +54VDC2
- Mounting airFiber X Mount (Rocket Mount Compatible)
- GPS Pole Mount (Included)
- Operating Temperature -40 to 55 C (-40 to 131 F)
- Weatherproofing IP673
- Certifications CE, FCC, IC
- Networking Interface
- Data Port (1) 10/100/1000 Ethernet Port
- Management Port (1) 10/100/1000 Ethernet Port
- Bluetooth v4.0
System
- Processor airFiber LTU IC
- Maximum Throughput 1.34 Gbps4, 5
- Maximum Range 100 km4
- Packets per Second 2+ Million6
- Latency 1.5 ms - 3.5 ms7
- Encryption AES-256
- OS airOS LTU
- Wireless Modes Master/Slave
1. Varies with firmware load and operational mode.
2. Full range depends on Ethernet cable length.
3. After installation of IP67 upgrade kit (included).
4. Throughput and range values may vary depending on the environmental conditions.
5. Assuming 4096QAM (available with future firmware upgrade).
6. Hardware bridge mode only.
7. Based on 2 ms frame
airFiber 5X HD The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
- Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
- Weight 0.35 kg (12.3 oz)
- RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
- (1) SMA Weatherproof (GPS)
- GPS Antenna External, Magnetic Base
- Power Supply 24V, 1A Gigabit PoE Adapter (Included)
- Power Method Passive Power over Ethernet
- Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
- Max. Power Consumption 6-12W1
- Supported Voltage Range +18 to +54VDC2
- Mounting airFiber X Mount (Rocket Mount Compatible)
- GPS Pole Mount (Included)
- Operating Temperature -40 to 55 C (-40 to 131 F)
- Weatherproofing IP673
- Certifications CE, FCC, IC
- Networking Interface
- Data Port (1) 10/100/1000 Ethernet Port
- Management Port (1) 10/100/1000 Ethernet Port
- Bluetooth v4.0
System
- Processor airFiber LTU IC
- Maximum Throughput 1.34 Gbps4, 5
- Maximum Range 100 km4
- Packets per Second 2+ Million6
- Latency 1.5 ms - 3.5 ms7
- Encryption AES-256
- OS airOS LTU
- Wireless Modes Master/Slave
1. Varies with firmware load and operational mode.
2. Full range depends on Ethernet cable length.
3. After installation of IP67 upgrade kit (included).
4. Throughput and range values may vary depending on the environmental conditions.
5. Assuming 4096QAM (available with future firmware upgrade).
6. Hardware bridge mode only.
7. Based on 2 ms frame
