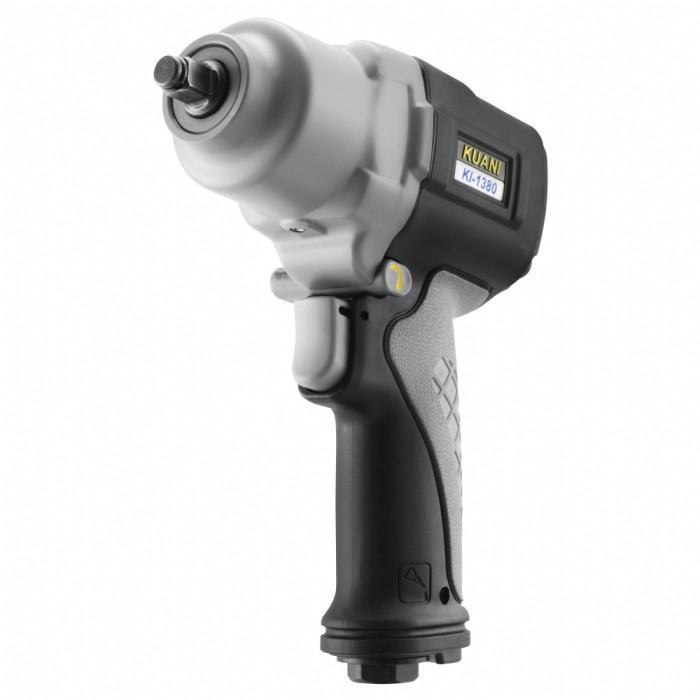

KI-1380 KUANI 3/8" SQ. DR. SUPER DUTY COMPOSITE AIR IMPACT WRENCH

Product Details
Category
Industry Category Automotive Aftermarket
Application Assembly Tools
Product Category Impact Wrench
Frequency of Application Workshop - High

Dimension
Length 1 -Imperial (inch) 6
Length 1 -Metric (mm) 152

Weight
Imperial (lb) 2.69
Metric (kg) 1.22

Power
Power Source Compressed Air
Recommended Air Inlet Pressure (psi) 90
Recommended Air Inlet Pressure (bar) 6.2
Avg. Air Consumption (cfm) 5.9
Avg. Air Consumption (L/min) 167
Air Inlet (inch) 1/4
Air Hose I.D. (inch) 3/8
Exhaust Direction Rear exhaust with muffler

Motor
Motor Type Air rotor
Free Speed (rpm) 13,500

Transmission Mode
Torque Transmission Mechanism Twin Hammer Clutch

Capability
Working Torque at 5th sec (Nm) 542
Working Torque at 5th sec (Ft-lb) 400

Holder
Anvil Length (inch) Standard
Anvil Shape Square Drive (inch)
Anvil Size - Square Drive (inch) 3/8

Safety Requirements
Machinery Safety Directives 2006/42/EC
Risk Assessment & Risk Reduction ISO 12100
Safety Requirements ISO 11148-6
Noise Level ISO 15744
Vibration Level ISO 28927-2

EC Declaration
CE Vib. & Sound Test Report No. 1404011
Sound Pressure db (A) 92.5
Sound Power db (B) 103.5
Sound Pressure db (C) 118
Sound - K db 3
Vibration M/S^2 10.4
Vibration -K 1.52

Features 4 positive power settings; full power in reverse
Comfortable TPR grip
400 ft-lb of max torque in reverse, with 13,500 rpm free speedBenefits Smooth & effi�cient one-handed F/R control
Well balanced ergonomic design
Fast rundown & productivity
Suitable for constant fastening task
