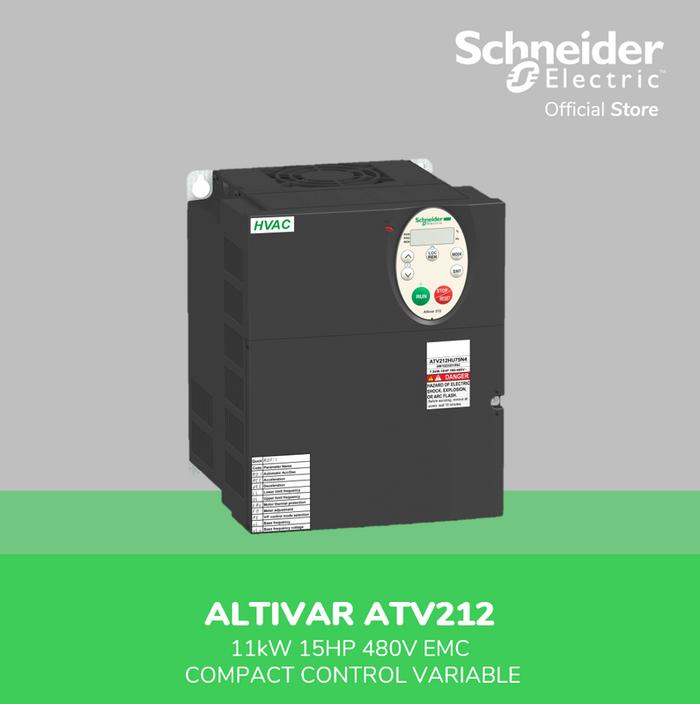

Schneider Electric ATV212 VSD Inverter 11kW 15HP - ATV212HD11N4

HVACVariable Speed Drives untuk motor 0,75 hingga 75kW, dibuat untuk kinerja, kecerdasan, dan perlindungan gedung.

[Spesifikasi]
1. product specific application : Pumps and fans in HVAC
2. assembly style : With heat sink
3. network number of phases : 3 phases
4. motor power kW : 11 kW
5. motor power hp : 15 hp
6. [Us] rated supply voltage : 380...480 V - 15...10 %
7. supply voltage limits : 323528 V
8. supply frequency : 50...60 Hz - 5...5 %
9. EMC filter : Class C2 EMC filter integrated
10. line current :
-16.8 A at 480 V
-21.1 A at 380 V
11. apparent power : 17.1 kVA at 380 V
12. prospective line Isc : 22 kA
13. continuous output current :
-22.5 A at 380 V
-22.5 A at 460 V
14. maximum transient current : 24.8 A for 60 s
15. motor slip compensation :
-Not available in voltage/frequency ratio motor control
-Automatic whatever the load
-Adjustable
16. width : 180 mm
17. height : 232 mm
18. depth : 170 mm
19. net weight : 6.45 kg
20. IP degree of protection : IP21
21. Variable speed drive application selection :
-Compressor for scroll Building - HVAC
-Fan Building - HVAC
-Pump Building - HVAC
22. Motor power range AC-3 :
-711 kW at 380440 V 3 phases
-711 kW at 480500 V 3 phases
23. motor starter type : Variable speed drive
