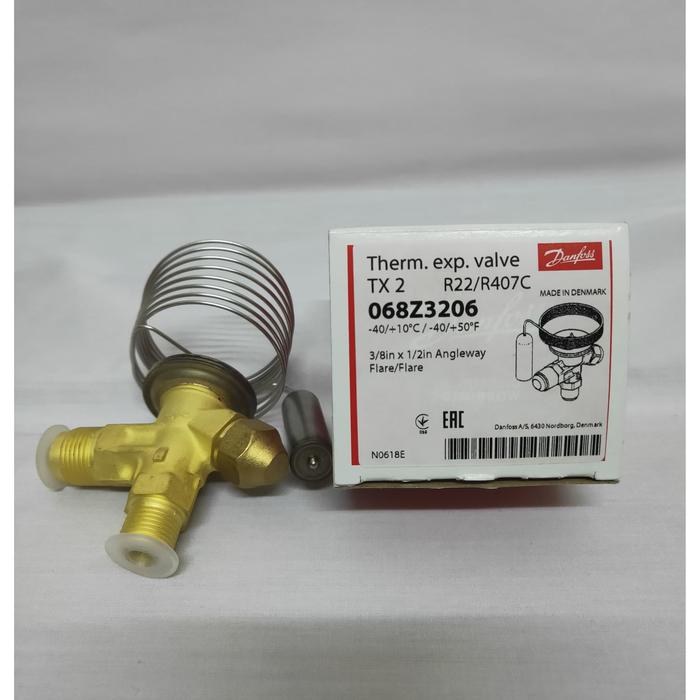

DANFOSS THERMO EXPANSION VALVE TX2 R22/R407C (068Z3206)
Rp505.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Product Details
Gross weight 0.32 kg
Net weight 0.28 kg
EAN 5702422114130
Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Category Art. 4, par. 3
Connection material Brass
Direction Angleway
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group II
Identical product 068Z3466
Inlet connection type FLARE
Inlet size [in] 3/8 IN
Max. Working Pressure [bar] 34 bar
Max. Working Pressure [psig] 500 psig
Outlet connection type FLARE
Outlet size [in] 1/2 IN
Packing format Multi pack
Parts included Bulb strap
Parts Program name T2/TE2
Pressure equalization Internally equalized
Product accessories TXV accessories
Product family name T2
Product group Expansion valves
Product name Thermostatic expansion valve
Quantity per packing format 20 pc
Rated cap. cond. Range N [IMP] OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI] OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Refrigerants R22/R407C
Serviceable TXV spare parts
Static Superheat (SS) [°C] 4 °C
Static Superheat (SS) [°F] 7.2 °F
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type T 2
UL approved refrigerants R22
R407C
Gross weight 0.32 kg
Net weight 0.28 kg
EAN 5702422114130
Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Category Art. 4, par. 3
Connection material Brass
Direction Angleway
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group II
Identical product 068Z3466
Inlet connection type FLARE
Inlet size [in] 3/8 IN
Max. Working Pressure [bar] 34 bar
Max. Working Pressure [psig] 500 psig
Outlet connection type FLARE
Outlet size [in] 1/2 IN
Packing format Multi pack
Parts included Bulb strap
Parts Program name T2/TE2
Pressure equalization Internally equalized
Product accessories TXV accessories
Product family name T2
Product group Expansion valves
Product name Thermostatic expansion valve
Quantity per packing format 20 pc
Rated cap. cond. Range N [IMP] OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI] OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Refrigerants R22/R407C
Serviceable TXV spare parts
Static Superheat (SS) [°C] 4 °C
Static Superheat (SS) [°F] 7.2 °F
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type T 2
UL approved refrigerants R22
R407C
