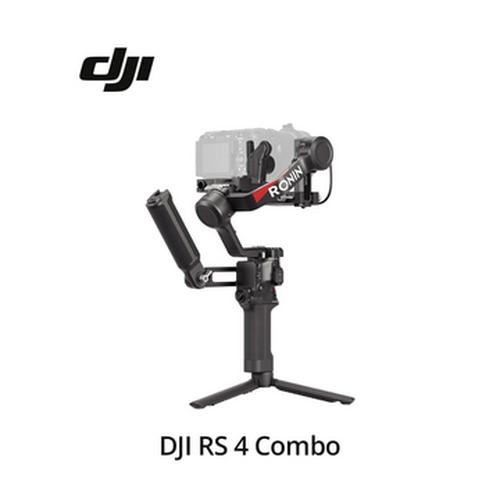

DJI RS 4 Combo - Gimbal Stabilizer | 2nd-Gen Native Vertical Shooting | Joystick Mode Switch for Zoom/Gimbal Control | Teflon-Coated Axis

DJI

Warna

Black

Tipe Aksesoris

Stabilizer

Lainnya

Peripheral


Accessory Port

Ronin Series Accessories (RSA)/NATO Ports

1/4""-20 Mounting Hole

‌Cold Shoe

Video Transmission Port (USB-C)

RSS Camera Control Port (USB-C)

Focus Motor Port (USB-C)


Battery

Model: BHX711-3000-7.2‌‌V

Type: LiPo 2S

Capacity: 3000 mAh

Energy: 21 Wh

Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)

Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C
Connections
Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements
iOS 11.0 or above
Android 8.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
Maximum Controlled Rotation Speed

Pan: 360°/s

Tilt: 360°/s

Roll: 360°/s


Mechanical Range

Pan Axis: 360° continuous rotation

Roll Axis: -95° to +240°

Tilt Axis: -112° to +214°



Mechanical & Electrical Properties


Operating Frequency

2.400-2.4835 GHz


Bluetooth Transmitter Power

< 8 dBm


Operating Temperature

-20° to 45° C


Weight

‌Gimbal: Approx. 1066 g

Grip: Approx. 203 g

‌Extended Grip/Tripod (Plastic): Approx. 183 g

Upper and Lower Quick-Release Plates: Approx. 98 g


Dimensions

Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)

Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)



DJI Ronin Image Transmitter


Connections

Power/Communication Port (USB-C)

HDMI Port (Mini HDMI)

RSS Camera Control Port (USB-C)


Expansion Port

Cold Shoe


Operating Frequency

2.400-2.4835 GHz

5.725-5.850 GHz


Weight

126 g


Dimensions

82×63×24 mm (L×W×H)


Transmitter Power (EIRP)

2.400-2.4835 GHz:

< 25 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)


5.725-5.850 GHz:

< 25 dBm (FCC/SRRC)

< 14 dBm (CE)


Battery

Capacity: 2970 mAh

Compatible Charger: 5 V/2 A

Charging Time: Approx. 2.5 hours

Operating Time: Approx. 3.5 hours


Transmission Range

200 m (SRRC/FCC)

100 m (CE)


Latency

60 ms


Operating Current/Voltage

900 mA/3.7 V


Operating Temperature

0° to 45° C



In The Box

Gimbal x1

BG21 Battery Grip x1

Quick-Release Plate (Arca-Swiss/Manfrotto) x1

Extended Grip/Tripod (Plastic) x1

Briefcase Handle x1

Lens-Fastening Support x1

Multi-Camera Control Cable (USB-C, 30 cm) x2

USB-C Charging Cable (40 cm) x1

Screw Kit x1

Carrying Case x1

Focus Pro Motor x1

Focus Pro Motor Rod Mount Kit x1

FIZ Sticker x1

DJI Logo Sticker x1

Focus Gear Strip x1


Native Vertical Shooting Generasi ke-2

Pengalih Mode Joystick, Kontrol Zoom/Gimbal

Lengan Sumbu Lapisan Teflon, Penyeimbangan Lebih Halus

Kapasitas Beban 3kg, Sumbu Tilt Diperpanjang

Port Komunikasi RSA, Ekosistem Kontrol Luas

Pegangan Baterai Kapasitas Tinggi, Durasi Baterai Sekitar 2,5x Lebih Lama
