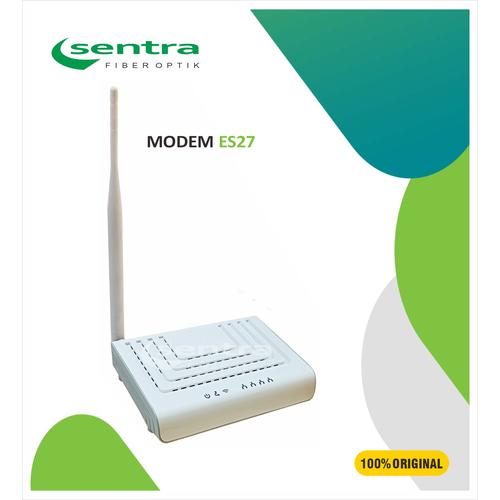

ES27 EoC Modem with WiFi

Modem ES27 is EOC slave integrated with 4FE + WIFI which completely deliver Ethernet data transmission over coax cable network.

FEATURE

● Operate on 7.5 – 65 MHz EoC signal around zero influence on CATV bandwidth.
● Slave can isolation under one master.
● Manage with WEB, TR069 management.
● Automatically configured with master in network.
● Bandwidth can be adjustable and auto- negotiation Ethernet port.
● Data & CATV end terminal in coax cable network.

Parameter :
- RF Interface : RF Input Metric F Connector, 1xCABLE-MIX-INPUT

RF Output Metric F connector, 1xTV RF Out

Frequency 7.5-65MHz

- Ethernet Interface : Interface Data Rate 4x100 auto-negotiation

Connector Type RJ45

- WIFI Interface : Protocol IEEE802.11b/g/n

Operating Mode Router & Bridge

Wireless Data Rate 150/300 Mbps

Antenna Gain 7 dB

- Network Management WEB, TR069

- Software Features VLAN, QOS, Bandwidth Control, Broadcast storm limitation

- 12V DC power supply adapter voltage 100 —240V AC
