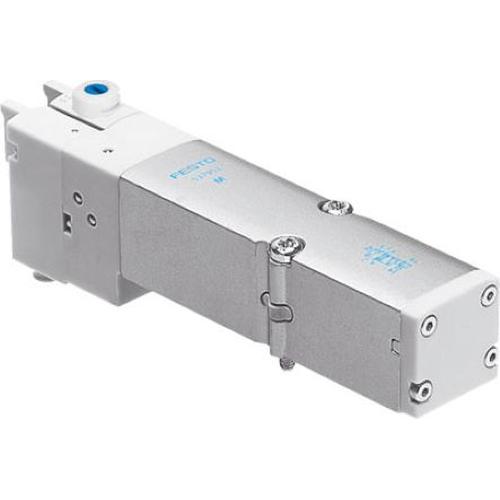

FESTO solenoid valve VMPA2-M1H-M-PI (537952)

Valve function 5/2 monostable
Type of actuation electrical
Valve size 20 mm
Standard nominal flow rate 670 l/min
Operating pressure MPa -0.09 ... 1 MPa
Operating pressure -0.9 ... 10 bar
Design structure Piston slide
Type of reset Air spring
Authorisation c UL us - Recognized (OL)
Protection class IP65
to IEC 60529
Sealing principle soft
Assembly position Any
Manual override detenting
Pushing
Type of piloting Piloted
Flow direction reversible
Overlap Positive overlap
Signal status display Yes
Pilot pressure MPa 0.3 ... 0.8 MPa
Pilot pressure 3 ... 8 bar
Suitability for vacuum Yes
Standard nominal flow rate with QS-8 670 l/min
Standard nominal flow with QS-10 870 l/min
Switching time off 28 ms
Switching time on 15 ms
Max. positive test pulse with logic 0 400 µs
Max. negative test pulse with logic 1 900 µs
Permissible voltage fluctuation +/- 25 %
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Vibration resistance Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27
Corrosion resistance classification CRC 1 - Low corrosion stress
Storage temperature -20 ... 40 °C
Medium temperature -5 ... 50 °C
Relative air humidity Max. 90% at 40°C
Ambient temperature -5 ... 50 °C
Max. tightening torque, valve mounting 0.65 Nm
Product weight 100 g
Mounting type with through hole
Materials note Conforms to RoHS
Material seals NBR
Material housing Aluminium die cast
