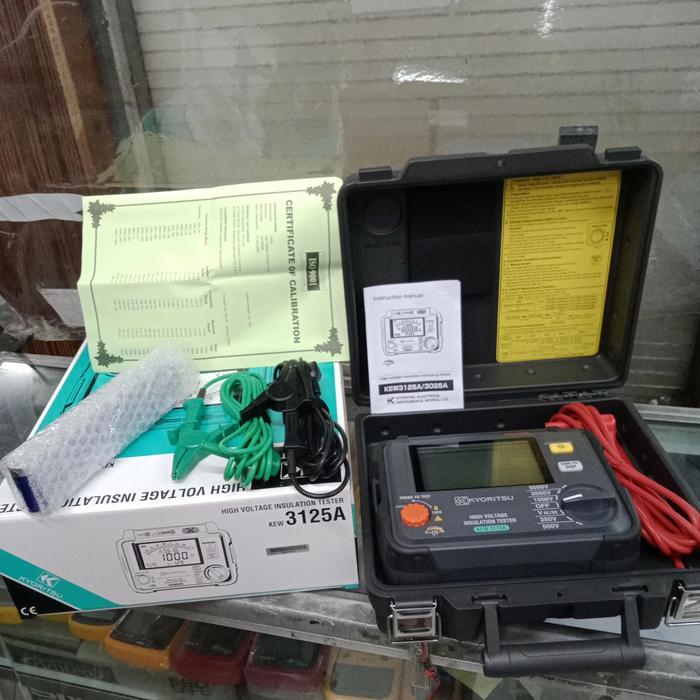

KYORITSU 3125A Digital Insulation Tester 250V-500V-1000V-2500V-5000V

• Insulation Resistance up to 1TΩ • Short-Circuit Current up to 1.5mA • Wide Test Voltage from 250V to 5000V • Diagnosis Function of PI and DAR • Newly-designed alligator clip • It comes with a tough hard case • Filter function reduces noise interference for obtaining stable measurement • Large display with Bar Graph indication and backlight • Live voltage warning • Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V Rated voltage 250V 500V 1000V 2500V 5000V Accuracy 0.0 - 100.0MΩ 0.0 - 99.9MΩ 80 - 1000M Ω 0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 2.00G Ω 0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 9.99GΩ 8.0 - 100.0GΩ 0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 9.99GΩ 8.0 - 99.9GΩ 80 - 1000GΩ ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±20%rdg (100GΩ or more) Short circuit current 1.5mA Output voltage Accuracy ±10% -10 - +20% 0 - +20% Monitor ±10%rdg±20V Voltage measurement Measuring range AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V Accuracy ±2%rdg±3dgt General Applicable standards IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2 Dimensions 177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Hard case) Including accessories( Termasuk accessories ) * 7165A (Line probe: 3m) * 7264 (Earth cord: 3m) * 7265 (Guard cord: 3m), * 8019 (Hook type prod) * 9180 (3025A Hard case) * 9181 (3125A Hard case), * instruction manual * Batere model LR14 / R14 ( Batere Size C ) × 8pcs Notes : Untuk pengiriman tujuan Jabodetabek dan Jawa Barat, batere disertakan dalam paket
