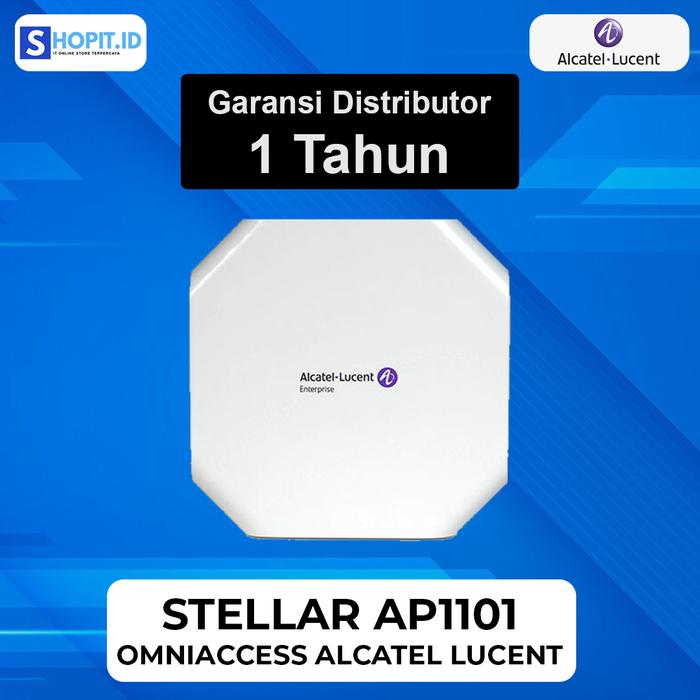

ALCATEL LUCENT OMNIACCESS STELLAR AP1101 WIRELESS ACCESS POINT - Warranty 1 TH

Brand ALCATEL LUCENT
Spesifikasi
Mounting
Wall mount, ceiling tile and desktop

Power
Maximum (worst case) power consumption:
- 10 W (802.3at PoE or DC)
Direct DC source:
- 48 V DC nominal, +/- 5%
Power over Ethernet (PoE):
- 48 V DC (nominal) 802.3af/802.3at compliant source
- When both power sources are available, DC power takes priority

Interfaces
1 10/100/1000 Mb/s full/halfduplex Ethernet (RJ-45)
PoE-PD: 48 V DC (nominal) 802.3af or 802.3at PoE
Security lock slot
Reset button: Factory reset

Visual Indicators (Tri-color LEDs)
For system and radio status:
- Red flashing: System abnormal, link down
- Red light: System startup
- Red and blue rotate flashing: System running, OS upgrading
- Blue light: System running, dual bands working
- Green flashing: System running, no SSID created
- Green light: System running, single band working
- Red, blue and green rotate flashing: System running, use for location of an AP

Antenna
Built-in 22:2, 3.4 dBi @ 2.4 GHz, 2.55 dBi @ 5 GHz

Capacity
Up to 8 SSID per radio (total 16 SSID)
Support for up to 255 associated client devices per AP

Radio specification
DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
Transmit beamforming (TxBF) for increased signal reliability and range
