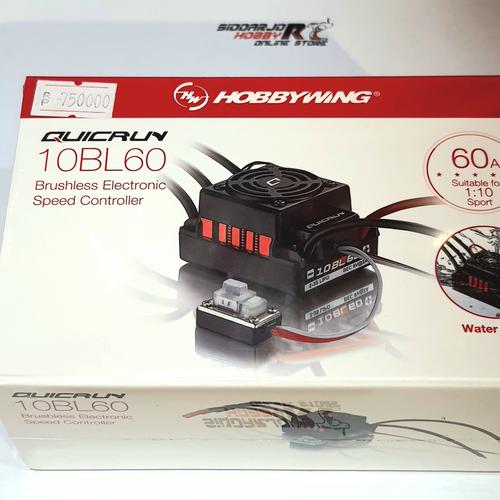

ESC Brushless 60A 10BL60 Hobbywing - 10BL60

PERHATIAN!!!
BARANG ORIGINAL DAN SEGEL PABRIK
kami tidak melakukan TEST fungsi karena di SEGEL
NO KOMPLAIN DAN NO RETUR
Membeli berarti setuju

ESC HW 10BL60
Specifications:

-Cont./Peak Current:60A/360A

-Input:2-3S LiPo/6-9 Cells NiMH

-BEC Output:Switch Mode:6V/3A

Wires & Connectors:

-Input Wires:Red-14AWG-150mm*1/Black-14AWG-150mm*1

-Output Wires:Black-14AWG-100mm*3

-Input Connectors:No

-Output Connecotors:4.0 Gold Connector (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan:

-Size:30.0x30.0x10.0mm

-Voltage Range:5-7.4V

-Powered by:Powered by BEC

ESC Programing via:

-SET Button on ESC:Supported

-LED Program Box:Supported

-LCD Program Box:Not Supported

-WiFi Module:Not Supported

-Program Port:FAN/Program Port

Firmware:

-Firmware Upgrade:Not Supported

Size & Weight:

-Size:48.5x38.0x32.0mm

-Weight:90g

Applications:

-Motors:SL BL Motors/SD BL Motors(only in SL mode)

-Vehicles:1/10th Touring Cars/Buggies/Trucks/Monster Trucks

-KV Rating/T Count:2S LiPo: 1/10th Touring Cars KV≤6000, 1/10th Buggies   KV≤4000

                    3S LiPo: 1/10th Touring Cars KV≤4000, 1/10th Buggies  KV≤3000

                  (36XX Series of Motors)

Variasi :
1pc Esc hobbywing 10BL60

1pc ESC + 1 pc Motor Goolrc brushless 3900kv, 3650
