Dijual IC TDA8920CTH Berkualitas

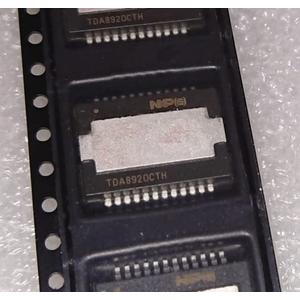

** TDA8920CTH Original ** Produk sesuai foto General description The TDA8920C is a high-efficiency class-D audio power amplifier. The typical output power is 2 x 110 W with a speaker load impedance of 4 Ohm. The TDA8920C is available in both HSOP24 and DBS23P power packages. The amplifier operates over a wide supply voltage range from 12.5 V to 32.5 V and features low quiescent current consumption. Features * Pin compatible with TDA8950/20B for both HSOP24 and DBS23P packages * Symmetrical operating supply voltage range from 12.5 V to 32.5 V * Stereo full differential inputs, can be used as stereo Single-Ended (SE) or mono Bridge-Tied Load (BTL) amplifier * High output power in typical applications: SE 2 110 W, RL = 4 (VP = 30 V) SE 2 125 W, RL = 4 (VP = 32 V) SE 2 120 W, RL = 3 (VP = 29 V) BTL 1 220 W, RL = 8 (VP = 30 V) * Low noise * Smooth pop noise-free start-up and switch off * Zero dead time switching * Fixed frequency * Internal or external clock * High efficiency * Low quiescent current * Advanced protection strategy: voltage protection and output current limiting * Thermal FoldBack (TFB) * Fixed gain of 30 dB in SE and 36 dB in BTL applications * Fully short-circuit proof across load * BD modulation in BTL configuration Datasheet SKU : 3131/1059642581797486592/55
