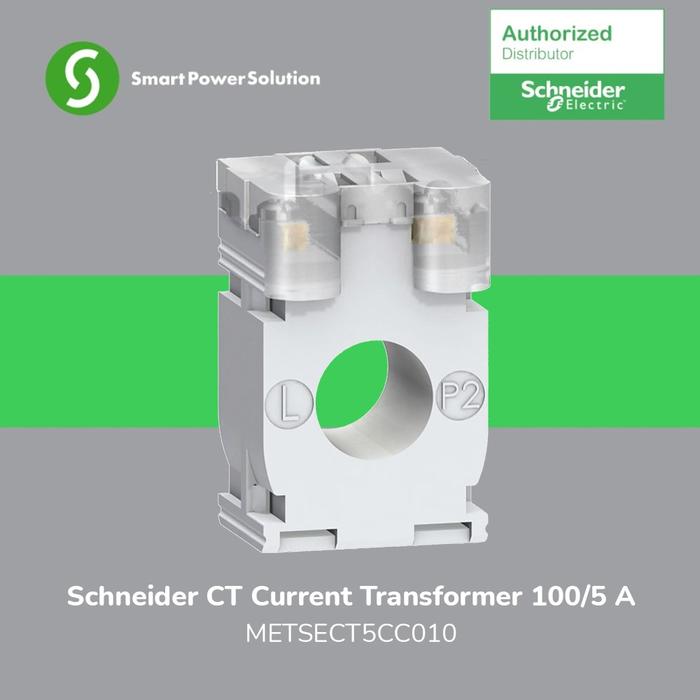

Schneider CT Current Transformer 100/5 A - METSECT5CC010

Current Transformer ini ditropiskan untuk kabel, mempunyai arus pengenal saluran 100 A dan arus pengenal sekunder 5 A. Current Transformer ini memungkinkan diameter luar kabel maksimum sebesar 21 mm. Kelas beban dan ketelitian sebagai berikut : kelas 0,5 daya maksimum : 2 VA, kelas 1 daya maksimum : 2,5 VA, kelas 3 daya maksimum : 3,5 VA. Range : PowerLogic Product name :CT Product or component type : Current transformer Secondary current : 5 A Accuracy class : Class 0.5 at 2 VA Class 1 at 2.5 VA Class 3 at 3.5 VA [In] rated current : 100 A current transformer type : Tropicalised for cable current transformer ratio : 100/5 [Ith] conventional free air thermal current : 6 kA dynamic withstand current : 2.5 Ith Maximum safety factor : 5 [Ue] rated operational voltage : lt; 720 V AC 50/60 Hz [Ui] rated insulation voltage : 3 kV Mounting mode : By screws, Clip-on Mounting support : Mounting plate, DIN rail Width : 44 mm outside: Height : 65 mm outside: Depth : 30 mm frame, 37 mm total Diameter : 21 mm Net weight : 0.19 kg [Uimp] rated impulse withstand voltage : 3 kV electrical insulation class : Class B Cable outer diameter : 21 mm Sealing : With Standards : VDE 0414, IEC 61869-2 product certifications : EAC, CE IP degree of protection : IP20 Relative humidity : 0…95 % Ambient air temperature for operation : -25…60 °C
