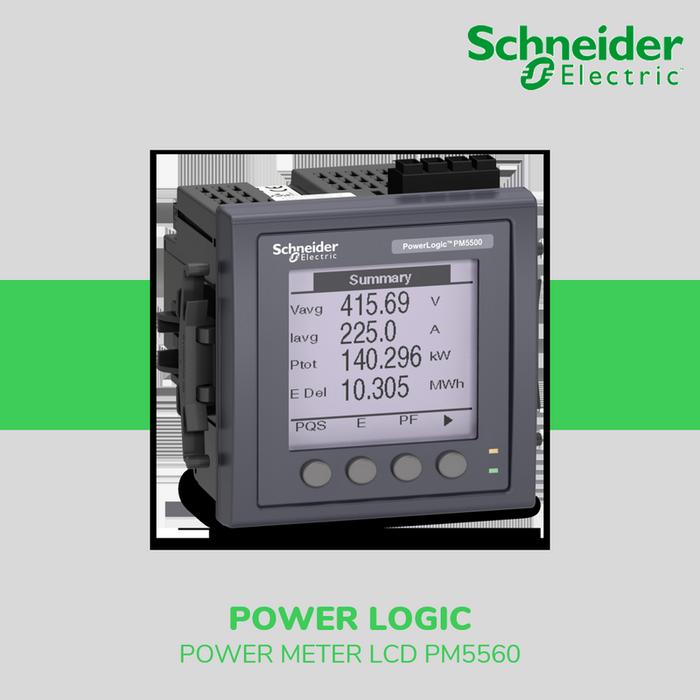

Schneider Electric PowerLogic Power Meter PM5560 Modbus METSEPM5560

[Deskripsi] PowerLogic PM5350 power meter yang memiliki semua kemampuan pengukuran yang diperlukan untuk memantau instalasi listrik dengan ukuran hanya 96 x 96 mm tunggal dan tebal 44 mm di belakang permukaan pemasangan. Dengan layarnya yang besar, ketiga fase dan netral dapat dipantau secara bersamaan. [Spesifikasi] 1. power quality analysis : -total demand distortion -total harmonic distortion 2. device application : Power monitoring 3. type of measurement : -Current 0.3 % -Voltage 0.3 % -Frequency 0.05 % -Power factor 0.005 % 4. supply voltage : -85...265 V AC 45...65 Hz -100...300 V DC 5. maximum power consumption in VA : 9.6 VA 6. display type : Backlit LCD 7. display resolution : 6 lines 8. sampling rate : 32 samples/cycle 9. measurement current : -0…1 A -0…5 A 10. measurement voltage : -20…690 V AC phase to phase -20…400 V AC phase to neutral 11. frequency measurement range : 45…70 Hz 12. number of inputs : 4 digital 13. accuracy class : Class 0.2S active energy conforming to IEC 62053-22 14. number of outputs : 2 relay 15. information displayed : Tariff (4) 16. communication port protocol : -JBUS -Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds 17. communication port support : Terminal block: RS485 18. data recording : -Min/max of instantaneous values -Alarms 19. mounting mode : Flush-mounted 20. type of installation : Indoor installation 21. standards : IEC 61010-1 22. width : 96 mm 23. depth : 44 mm 24. height : 96 mm 25. net weight : 0.25 g
