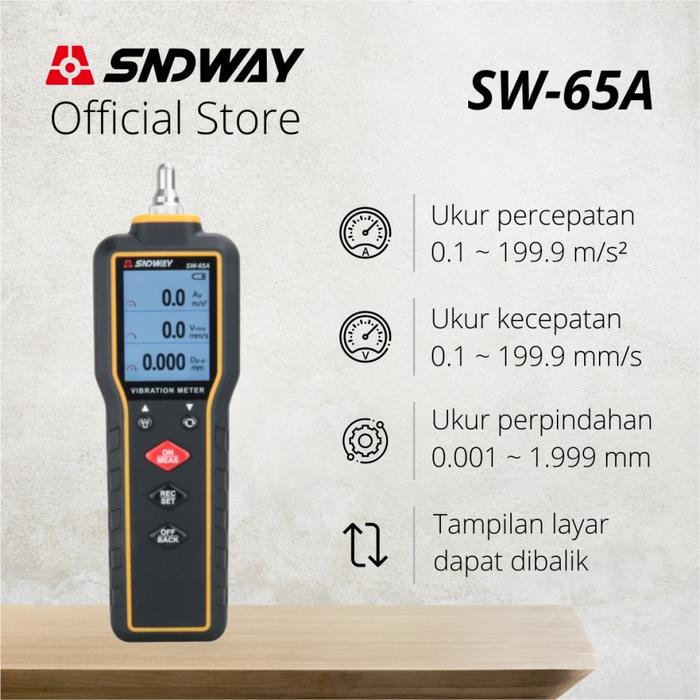

SNDWAY Vibration Meter Digital SW-65A Pengukur Getaran - SW-65A
Rp1.700.000
Pilih tipe: SW-65A
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
SNDWAY Vibration Meter SW-63A dan SW-65A
Spesifikasi:
SW-63A dan SW-65A:
Sensor: Piezoelectric accelerometer
Acceleration measurement range: 0.1 ~ 199.9m/s2 (Peak)
Speed measurement range: 0.1 ~ 199.9mm/s (True RMS)
Displacement measurement range: 0.001 ~ 1.999mm (Peak)
Measurement error: (5% ± 2digits)
Low frequency acceleration measurement frequency range: 10Hz ~ 1KHz
High frequency acceleration measurement frequency range:1KHz ~ 10KHz
Speed measurement frequency range:10Hz ~ 1KHz
Displacement measurement frequency range :10Hz ~ 500Hz
Data refresh time: 500ms
Layar:
SW-65A - 2" Color LCD Screen (bisa diputar 360° untuk memudahkan pembacaan)
SW-63A - Colorless LCD Screen (tidak bisa diputar)
Senter:
SW-65A
Memory:
SW-65A - 200 sets
Battery:
SW-65A - 2x 1.5v AAA (tahan 4 jam pemakaian full)
SW-63A - 2x 1.5v AAA (tahan 12 jam pemakaian full)
Dimensi:
SW-65A - 176 x 52 x 25 mm
SW-63A - 177 x 65 x 28 mm
Working and storage conditions:
Working humidity: 20%RH~80%RH
Operating temperature: 0C~50C
Storage temperature: -20C~60C
Storage humidity: 20%RH~80%RH
Paket berisi:
1 unit SNDWAY SW-63A / SW-65A sesuai pemilihan varian
1 unit handstrap
1 unit case
1 unit probe panjang
1 unit probe pendek
Manual
Spesifikasi:
SW-63A dan SW-65A:
Sensor: Piezoelectric accelerometer
Acceleration measurement range: 0.1 ~ 199.9m/s2 (Peak)
Speed measurement range: 0.1 ~ 199.9mm/s (True RMS)
Displacement measurement range: 0.001 ~ 1.999mm (Peak)
Measurement error: (5% ± 2digits)
Low frequency acceleration measurement frequency range: 10Hz ~ 1KHz
High frequency acceleration measurement frequency range:1KHz ~ 10KHz
Speed measurement frequency range:10Hz ~ 1KHz
Displacement measurement frequency range :10Hz ~ 500Hz
Data refresh time: 500ms
Layar:
SW-65A - 2" Color LCD Screen (bisa diputar 360° untuk memudahkan pembacaan)
SW-63A - Colorless LCD Screen (tidak bisa diputar)
Senter:
SW-65A
Memory:
SW-65A - 200 sets
Battery:
SW-65A - 2x 1.5v AAA (tahan 4 jam pemakaian full)
SW-63A - 2x 1.5v AAA (tahan 12 jam pemakaian full)
Dimensi:
SW-65A - 176 x 52 x 25 mm
SW-63A - 177 x 65 x 28 mm
Working and storage conditions:
Working humidity: 20%RH~80%RH
Operating temperature: 0C~50C
Storage temperature: -20C~60C
Storage humidity: 20%RH~80%RH
Paket berisi:
1 unit SNDWAY SW-63A / SW-65A sesuai pemilihan varian
1 unit handstrap
1 unit case
1 unit probe panjang
1 unit probe pendek
Manual
