8-Digit Led Digital Display Control Module MAX7219
Rp13.260
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Komponen Elektronik

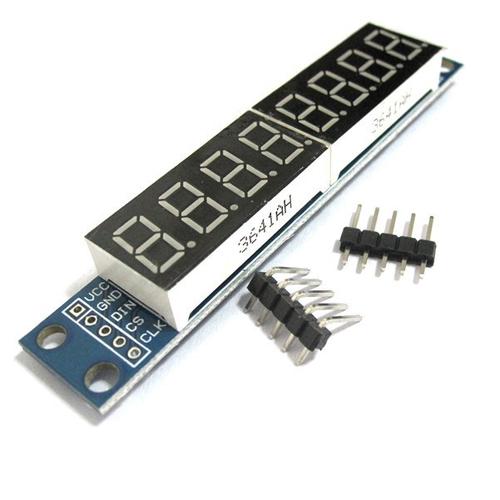

8-Digit Led Digital Display Control Module MAX7219
This is MAX7219 Based Serial 8-Digit 7 Segment LED Display Module. Also Called LED Tube Display. It has an integrated serial input / output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display.
A convenient four-wire serial interface can connect all common microprocessor. Each data can be addressed in the update without rewriting all displays. MAX7219 also allows the user to select each data encoding or no coding.
The display also has a 150A low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data.
Technical Specifications
No of Digits: 8
Power: 5V.
Color: Blue
Interface Type: SPI, QSPI, MICROWIRE Serial Interface
Maximum Clock : 10MHz
Digit LED Color: Bright RED
Cascading Ability: Can be chained or cascaded to drive unlimited units
Display Driver: MAX7219
Material: PCB + Electronic Components
Size: 82 x 15 x 18mm
This is MAX7219 Based Serial 8-Digit 7 Segment LED Display Module. Also Called LED Tube Display. It has an integrated serial input / output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display.
A convenient four-wire serial interface can connect all common microprocessor. Each data can be addressed in the update without rewriting all displays. MAX7219 also allows the user to select each data encoding or no coding.
The display also has a 150A low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data.
Technical Specifications
No of Digits: 8
Power: 5V.
Color: Blue
Interface Type: SPI, QSPI, MICROWIRE Serial Interface
Maximum Clock : 10MHz
Digit LED Color: Bright RED
Cascading Ability: Can be chained or cascaded to drive unlimited units
Display Driver: MAX7219
Material: PCB + Electronic Components
Size: 82 x 15 x 18mm
