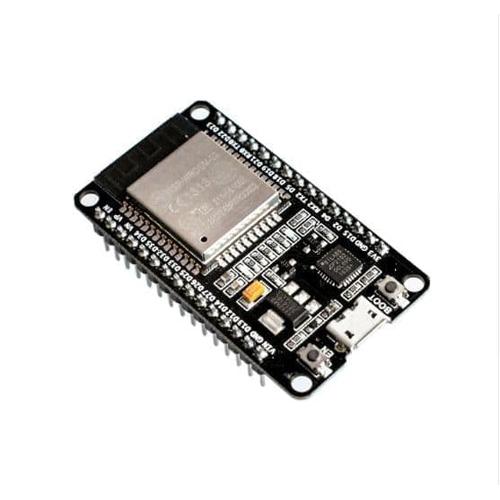

ESP 32 WROOM 32 ESP32 WiFi BLE Development Board dengan Arduino IDE

ESP32 WROOM32 development board memiliki integrated antenna, power amplifier,

low-noise amplifiers, filters, dan modul power management. Modul ESP32 ini

merupakan mikrokontroler 32-bit dengan fasilitas WiFi, Bluetooth, dan BLE

menjadikannya modul yang sangat lengkap untuk aplikasi Internet of Things.
Spesifikasi

- Program memory 448 kB

- CAN, I2C, I2S, SDIO, SPI, UART

- ADC 12-bit

- Maximum clock 120 MHz

- Tegangan suplai 2.3 V hingga 3.6 V

- Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s)

- Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)

- 25x digital GPIO

- 1 x UART, including hardware flow control RTS CTS

- 1 x SPI

- 1 x I2C

- 15 x ADC input channels

- 2 x DAC

- PWM/timer input/output available on every GPIO pin

- OpenOCD debug interface with 32 kB TRAX buffer

- SDIO master/slave 50 MHz

- Supports external SPI flash up to 16 MB

- SD-card interface support

- Tiga mode operasi AP, STA, dan AP+STA
