BARCODE SCANNER E-FAKTUR 2D dan 1D PANDA - scanner QR CODE

Special Promotion ...

Barcode scanner bisa baca barcode 1D (batang) maupun 2D (QR Code)

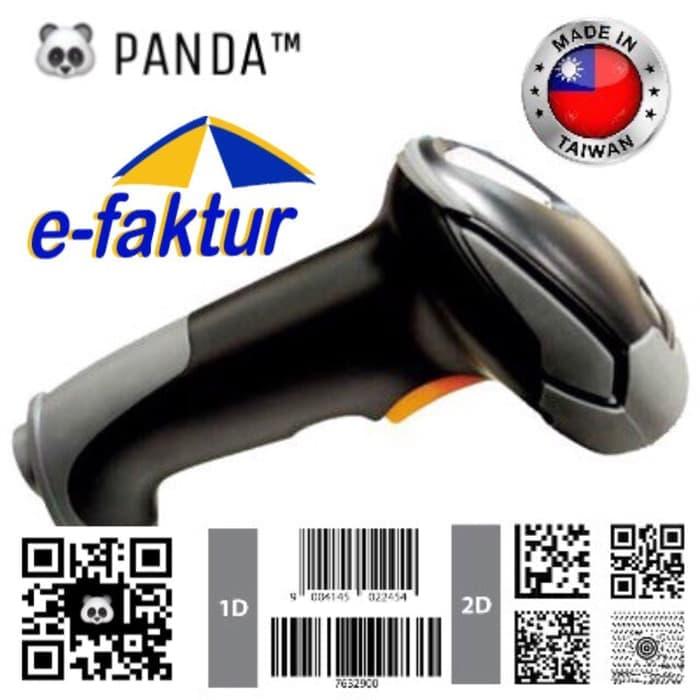

PANDA 2D Barcode Scanner

Specifications/Descriptions
Light Source Aiming: 617nm LED, Illumination 6500K LED

Best Resolution
Normal indoor lighting up to 1600 Lux. Sunlight up to 86,000 Lux.
Print contrast Signal 25% minimum reflective difference
Field of View: 51 (H) x 40 (V)
Roll/Pitch/Yaw 360 / 65 / 60
Motion Tolerance Up to 25in. (63.5cm) per second
Indicator Blue LED & beeper
Interface USB

Symbologies: 2D
PDF417, Data Matrix, QR Code
Symbologies: 1D
UPC/EAN, Code 128, Code 39, Code 39 Full ASCII, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI, Chinese 2 of 5,

Electrical
Input Voltage 5V DC 5%
Power Consumption 1.65W
Current - Standby 90mA
Current - Operating 260mA

Environment
Operating Temperature: 32 to 122 F / 0 to 50 C
Storage Temperature: -40 to 158 F / -40 to 70 C
Humidity: 5% to 95%, non-condensing

Drop/Shock Specifications:
Withstands 10Gs 0.06" double amp
Ambient Light Immunity:
Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
Physical
Case Material: ABS + Rubber
Dimension: 97 x 70 X 175 mm
Weight:120g (without cable and package)
Cable: 1.8m coiled or straight Cable

Decode Ranges and Resolution
Symbol & Density/Range
Code 39 (5 mil) 60mm-120mm
Code 39 (20 mil) 35mm-350mm
QR Code (15mil) 40mm-160mm
Resolution 1D Code 39 4.0mil (0.1mm)
Resolution 2D QR code 6.6mil (0.168mm)

Garansi 1 Tahun
