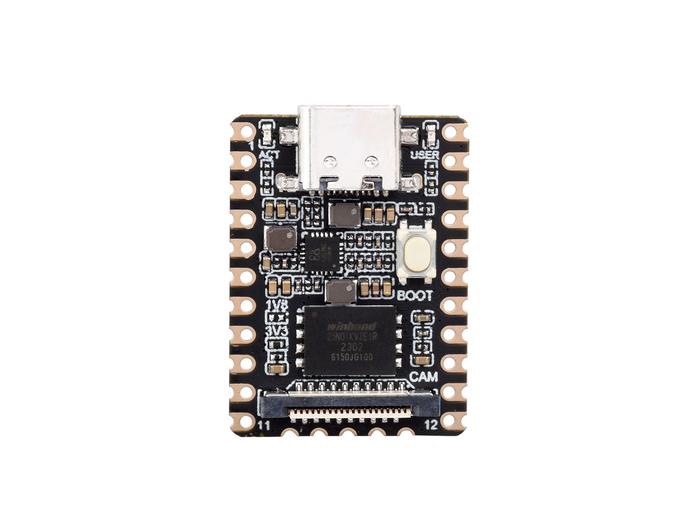

Luckfox Pico Mini RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, 17×GPIO pins

SELAMAT DATANG DI TOKO KAMI Brand Name : Waveshare Model Number : Luckfox Pico Mini A Origin : Mainland China Certification : none Demo Board Type : FPGA Camera : MIPI CSI 2-lane DESCRIPTION Luckfox Pico Mini RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors Specifications Processor Cortex A7@1.2GHz + RISC-V NPU 0.5TOPS, supports int4, int8 and int16 ISP Input 4M @30fps (Max) Memory 64MB DDR2 USB USB 2.0 Host/Device Camera MIPI CSI 2-lane GPIO 17 GPIO pins Default Storage Mini A: TF card (Not included) Mini B: SPI NAND FLASH (128MB) Version And Pinheader Options Exquisite Appearance, Compact Size Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications Highly Integrated And Powerful Performance Integrates CPU, NPU, ISP And Other Processors Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4 Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition #34;in one second #34; Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths Integrated with built-in POR, audio codec and MAC PHY Easier To Develop Integrates TF Card Slot And Camera Interface SLC NAND FLASH For A Better User Experience Application Example Suitable For More Application Scenarios Pin Definition What #39;s On Board USB Type-C connector for power supply and program burning ACT-LED system operation status indicator (in the default system) USER-LED BOOT button Press it when powering on to enter download mode SLC NAND FLASH Only available on the B version, and reserved pads for A version CSI camera interface MIPI CSI 2-lane TF card slot RV1106 Vision processor SoC with built-in ARM Cortex-A7 core Product Show Outline Dimensions Luckfox Pico Product Selection PRODUCT MAIN CHIP MEMORY NPU ISP DEFAULT STORAGE FEATURES LUCKFOX PICO MINI A RV1103G1 64MB 0.5TOPS, supports int4, int8 and int16 Input 4M @30fps (Max) TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc. LUCKFOX PICO MINI B SPI NAND FLASH (128MB) LUCKFOX PICO TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc. LUCKFOX PICO PLUS SPI NAND FLASH (128MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc. LUCKFOX PICO PRO RV1106G2 128MB Input 5M @30fps (Max) SPI NAND FLASH (256MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc. LUCKFOX PICO MAX RV1106G3 256MB Certificate Of Authorization Resources amp; Services Wiki: PACKAGE CONTENT Weight: 0.003 kg Luckfox Pico Mini A Luckfox Pico Mini A x1 Luckfox Pico Mini A M Luckfox Pico Mini A with pre-soldered headerx1 Luckfox Pico Mini B Luckfox Pico Mini B x1 Luckfox Pico Mini B M Luckfox Pico Mini B with pre-soldered header x1 Sebelum membeli suatu produk, Mohon dapat membaca deskripsi produk dengan cermat Harap tanyakan stok sebelum melakukan pemesanan ya kak Jika Anda memiliki pertanyaan, silakan hubungi kami.
