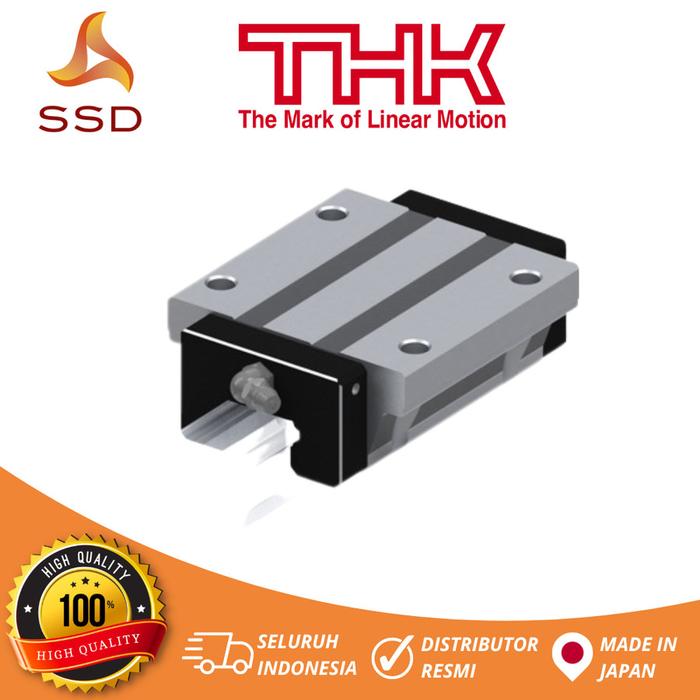

THK Caged Ball Linear Guide Block SHS45C SHS45C1SS SHS45C1ZZ - SHS45C1ZZ

Informasi Toko :

- Harga yang tercantum sudah include PPN 11%
- Untuk bisa terbit e-faktur, silakan tulis di catatan dan kirim NPWP PT sebelum order. Jika tidak, maka kami tidak dapat menerbitkan e-faktur
- Kami menerima transaksi offline menggunakan Purchase Order (PO) perusahaan.
- Untuk permintaan Penawaran, Pengiriman PO, dan NPWP silakan chat ke WA kami (81293276989) atau mail (ssdshop at suryasarana com)

Terima kasih.

[Features]
Caged ball design provided high-speed rotation, a low noise level, and extended service life.
Balls travel in four precision-ground raceways on an LM rail through the LM block, and endplates incorporated in the LM block.
Each row of balls is placed at a contact angle of 45so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity.
Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion.

Set / Single Item Block Only Block Type [Wide] C: Flanged w/Tapped and Thru Holes
Nominal Part Number 45 Rail Type -
Mounting Height M(mm) 60 Material Carbon Steel
Radial Clearance Normal Accuracy Grade Normal Grade (Best Leadtime)
Ball Arrangement 4-Row, Circular Retainer Available
Lubrication System N/A Rolling Element Ball


SSD Automation adalah Toko Online dari PT. Surya Sarana Dinamika (Authorized Agent) yang berfokus menyediakan barang-barang otomasi dari brand-brand berkualitas seperti THK, AUTONICS, SAMICK, SUNG-IL, CKD, HANSHIN, ORIENTAL MOTOR, DAN LAINNYA.

Keuntungan bertransaksi di SSD Automation adalah:
- Respon cepat
- Pengiriman tepat waktu
- Produk yang dikirim dijamin sesuai
- Garansi Distributor Resmi
- Selalu ada CASHBACK BULANAN
- HARGA SPESIAL KHUSUS RESELLER

Note: Mohon tanyakan stok terlebih dahulu sebelum order.
