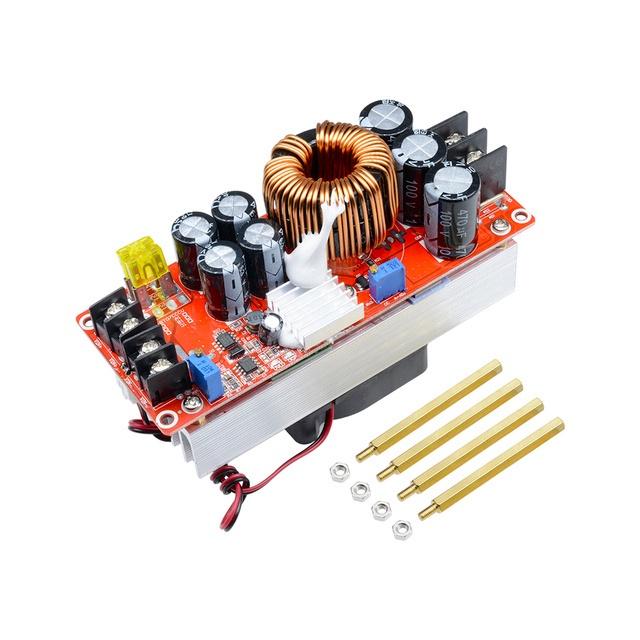

1500W 30A 1200W 20A DC-DC BOOST CONVERTER STEP UP MODUL CATU DAYA - 1500W 30A

Description: Module model: SZ-BT07CCCV-D1 Module properties: non-isolated booster module Input voltage: DC10-60V Input current: 10-30V input voltage, maximum current 30A The input voltage is 31-60V and the maximum current is 25A Static working current: 15mA (12V L 20V, the higher the output voltage, the static current will increase) Output voltage: 12-90V continuously adjustable (default output 19V. If you have a multimeter, the buyer can adjust it) Output current: Maximum 20A, greater than 15A, please strengthen heat dissipation (related to input and output voltage difference, the greater the pressure difference, the smaller the output current) Constant current range: 0.8-20A (+/ -0.3A) Input backconnect: Yes (150A power MOS backconnect) Low battery protection: with (8-50V adjustable) self-recovery function Operating temperature: -40 ~ + 85 degrees (improve heat dissipation when the ambient temperature is too high) Operating frequency: 150KHz Conversion efficiency: 92-97% (Efficiency is related to input, output voltage, current and differential pressure. Low voltage difference) Input overcurrent protection: Yes (input over 35A, automatic protection, power supply does not boost) Short circuit protection: It is (input 30A fuse) double short circuit protection, safer use. Input backconnect protection: is (150A power MOS tube backconnect. Can be reversed for a long time) Installation method: 4 3mm copper columns Wiring mode: Wiring terminal (please use high current pure copper wire) Module size: 130mm x 52mm x 84mm (L x W x H) (high copper column and fan), 130mm x 52mm x 67mm (long x W x H) (no copper column and fan height) Module single weight: 490g Output power: = Input voltage x 30A, for example, input 12V x 30A = 360W When input 12V, the maximum power is 360W Input voltage x 30A For example, input 24V x 30A = 720W, that is, the maximum power is 720W when input 24V Scope of application: 1. The DIY power supply Power supply, 12V can be input and output can be
