Bose MA12 modular column array loudspeaker / Bose Panaray MA12 Modular Line Loudspeaker / Bose Speaker Kolum MA12 MA 12 MA-12 - Hitam

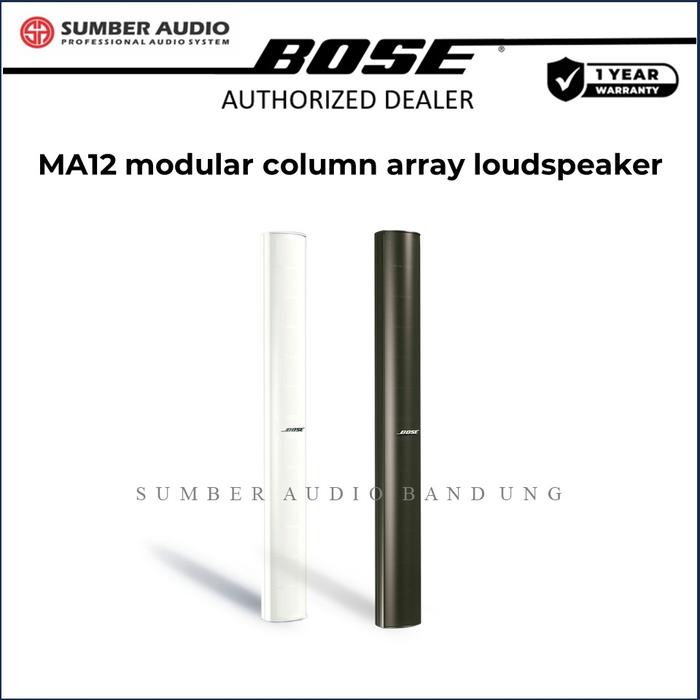

Bose MA12 modular column array loudspeaker

Original & Garansi Resmi Bose Indonesia PAI

Assesories Tambahan :

Technical Specification

COMPLIANCE :

EN 54-24 Certified
No

PHYSICAL :

Colors
Black, white

Enclosure Material
Extruded-aluminum sidewalls with steel top & bottom endcaps, all powder-coated

Grille
Aluminum, powder-coated finish

Suspension/Mounting
4 × M6 threaded inserts

Net Weight
19.0 lb (8.5 kg)

Product Dimensions (H×W×D)
38.8 in × 4.2 in × 5.0 in (984 mm × 105 mm × 128 mm)

PERFORMANCE :

Frequency Range (-10 dB)
100 Hz – 16,000 Hz

Coverage, Horizontal
145°

Calculated Maximum SPL @ 1 m
113 dB continuous, 119 dB peak

Nominal Impedance
8 Ω

Power Handling, long-term continuous
300 W

Power Handling, Peak
1200 W

Recommended Signal Processing
Bose Professional loudspeaker EQ

Sensitivity (SPL/1 W at 1 m)
88 dB

Transformer Taps, 100V
CVT-MA12 transformer available

Transformer Taps, 70V
CVT-MA12 transformer available

Coverage, Vertical
20°

TRANSDUCERS :

Driver Protection
Overload protection

Low-Frequency
12 × 2.25 in (57 mm) high-excursion mid/high-frequency drivers
