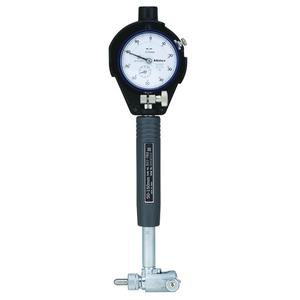

MITUTOYO 511-773 BORE GAUGE SHORT LEG 50-150/0.001MM 511-773 - ORI

Details
BORE GAGE 50-150/0.001MM 511-773 adalah alat ya ng digunakan untuk mengukur diameter suatu silinder. Alat ini mempunyai tangkai pemegang yang panjang dan sebuah dial gauge untuk membaca hasil ukur. Jarum pengukur akan bergerak ke kanan atau kekiri sesuai dengan nilai pengukuran yang didapat apakah kurang atau lebih dari ukuran stand ar benda kerja. Bore gauge ini mempunyai dimensi 416 X 62 X 186 M M dengan kapasitas pengukuran 50-150 MM. Bore gauge sering diguna kan di industri, pabrik, atau bengkel. Specification
More Information
Brand MITUTOYO
Lead Time 130
Sales UOM EA
Warranty Code 00
Guide Force 10 N Or Less
Ip Rating None
Material Stainless Steel
Measuring Force 5 N Or Less
Range 50-150 MM
Stroke Of Contact Point 1.6 MM
Indent Time 30
Graduation 0.001 MM
Manufacturing Number 511-773
Dimension Unit 416 X 62 X 186 MM
Netto Weight 0.40 KG
Type Series 511
Benefit
Easy and Accurate measurement of inside diameters
Features
Compact and lightweight due to the short length below the trip.
Now offers a longer plunger stroke while maintaining origina l accuracy.
Carbide is used for the contact point ensuring high durability and wear resistance.
High accuracy measurement.
optional extension rods can be attached for measuring deep holes. < li> Dial indicator and protection covers are optionally available.
A bore gage checker and a range of setting ring are available to aid in accurately setting a gage before making a measurement.
Short leg type
Specification
Range : 50-150 mm
Stroke of contact point : 1.6 mm
Measuring force : 5N or less
Guide force : 10N or less
Graduation/Resolution : 0.001 mm
Standard Certificate -
