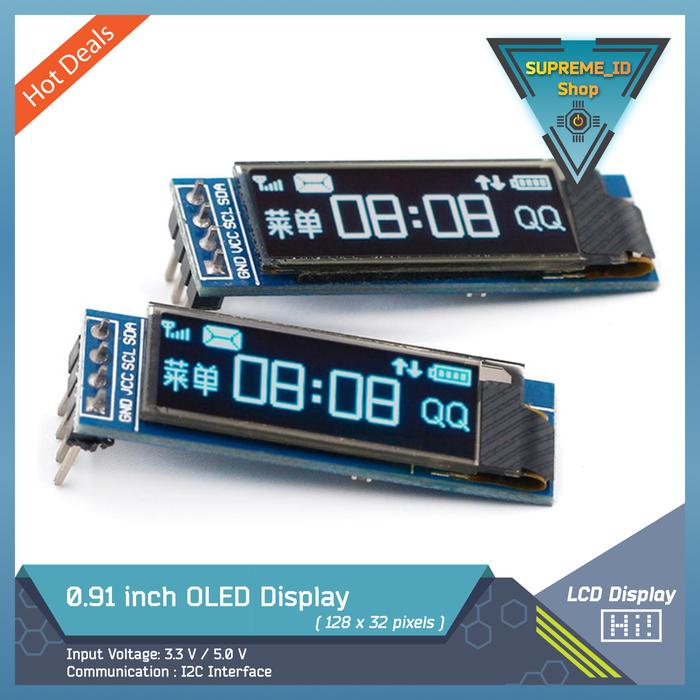

0.91 inch 128x32 px pixels I2C IIC OLED LCD Screen Display | 3.3-5Vdc - Putih
Rp23.000
Pilih warna: Putih
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: COM o LCD Display
2.32 cm (0.91 inch) I2C/IIC 128×32 OLED Display Module – Blue Color offers 128×32 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.
The most attractive thing about using the OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!!
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called as IIC) serial interface.
The 2.32 cm (0.91 inch) I2C/IIC 128×32 OLED Display Module – Blue Color produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle.
Specification:
OLED Driver IC: SSD1306
Operating Voltage: 3.3-5V
Resolution: 128 x 32
Text Color: Blue
Background Color: Black
Full Compatible with Arduino
Working temperature: -30°C ~ 70°C
Interface: I2C
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Features :
Work perfectly well without the need of back light.
128*32 high resolution, ultra wide viewing angle
The display is self-illuminating
Power requirement is low
Fully compatible with multiple controlling chips including Arduino and more.
Better performance characteristics than traditional LCD and LED displays.
OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.
The most attractive thing about using the OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!!
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called as IIC) serial interface.
The 2.32 cm (0.91 inch) I2C/IIC 128×32 OLED Display Module – Blue Color produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle.
Specification:
OLED Driver IC: SSD1306
Operating Voltage: 3.3-5V
Resolution: 128 x 32
Text Color: Blue
Background Color: Black
Full Compatible with Arduino
Working temperature: -30°C ~ 70°C
Interface: I2C
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Features :
Work perfectly well without the need of back light.
128*32 high resolution, ultra wide viewing angle
The display is self-illuminating
Power requirement is low
Fully compatible with multiple controlling chips including Arduino and more.
Better performance characteristics than traditional LCD and LED displays.
