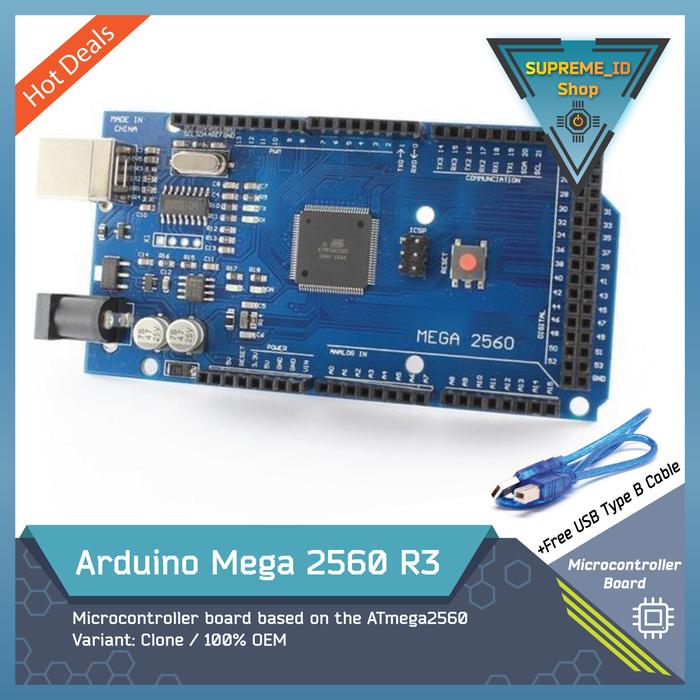

Arduino OEM Original Mega 2560 R3 Microcontroller 8-bit I/O Pin + USB Cable - Clone
Rp199.000
Pilih ukuran: Clone
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: COM o Arduino
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Specification:
Variant : Clone / OEM
Microcontroller : ATmega2560
Operating Voltage : 5V
Input Voltage (recommended) : 7-12V
Input Voltage (limit) : 6-20V
Digital I/O Pins : 54 (of which 15 provide PWM output)
Analog Input Pins : 16
DC Current per I/O Pin : 20 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory : 256 KB of which 8 KB used by bootloader
SRAM : 8 KB
EEPROM : 4 KB
Clock Speed : 16 MHz
LED_BUILTIN : 13
Dimension : 101.52 mm x 53.3 mm
Specification:
Variant : Clone / OEM
Microcontroller : ATmega2560
Operating Voltage : 5V
Input Voltage (recommended) : 7-12V
Input Voltage (limit) : 6-20V
Digital I/O Pins : 54 (of which 15 provide PWM output)
Analog Input Pins : 16
DC Current per I/O Pin : 20 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory : 256 KB of which 8 KB used by bootloader
SRAM : 8 KB
EEPROM : 4 KB
Clock Speed : 16 MHz
LED_BUILTIN : 13
Dimension : 101.52 mm x 53.3 mm
