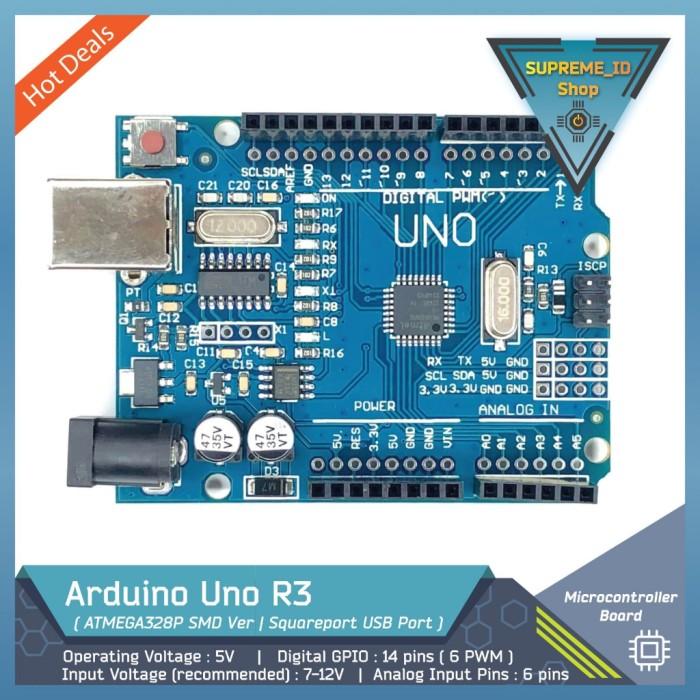

Arduino Uno R3 ATmega328p SMD ver 8-bit Arduino Microcontroller Development Dev Board Pin Header | Micro USB | Squareport USB (Type-B) | USB Type-C - Squareport (Type-B)

Rp48.000

Pilih ukuran: Squareport (Type-B)

  • Kondisi: Baru
  • Min. Pemesanan: 1 Buah
  • Etalase: COM o Arduino
Arduino UNO R3 SMD uses surface mount version of the Atmega328P instead of the through-hole version. the board is based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Link Kabel USB : https://www.tokopedia.com/supreme/usb-2-0-cable-kabel-high-speed-to-usb-type-c-micro-usb-mini-usb-squareport-usb-type-b-30-cm-for-microcontroller-programming-cable

Microcontroller: ATmega328
Port: Squareport USB (Type-B) | USB Type-C port | Micro USB port
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
