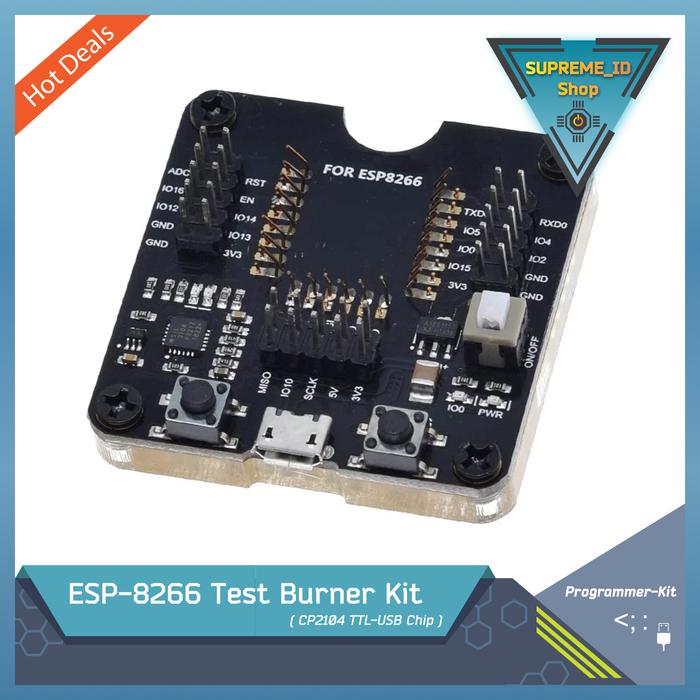

Mini Test / Burning / Programming Dev Burner Board CP2104 Plug & Play for ESP8266 | ESP32-WROOM | ESP32-WROVER Motherboard - ESP8266 ver

The ESP8266 | ESP-32-WROOM | ESP-32-WROVER is development fixture board can be used to program ESP8266 | ESP-32-WROOM | ESP-32-WROVER chips for development and small-batch production. The development board comprises fixtures for the ESP8266 | ESP-32-WROOM | ESP-32-WROVER modules with an inbuilt CP2104 USB-TTL chip and an AMS1117 3.3 version regulator to drive and program the ESP module through USB. The development fixture also has GPIO headers which can be used to drive peripherals directly from the development fixture board.

This fixture board is suitable for bulk programming and testing these SMT chips quickly without soldering the chips individually. Also suitable for testing and debugging during production.

Product Specifications:

Model: ESP8266 | ESP-32-WROOM | ESP-32-WROVER Fixture Code Downloader
Suitable for ESP12S | ESP07S | ESP-32 | ESP-32-WROVER modules and other modules with a similar footprint
Support firmware one-click download
Safe and reliable, small size, long service life.
There are power indicator lights, burning indicator lights, and serial communication indicator lights.
Lead out all IO ports, which can be as a minimum system development board or a small batch burning fixture
Controller Chip: CP2104 UART to UART Bridge Controller
Interface: USB
Dimension: L 47mm x W 50mm x D 5mm
