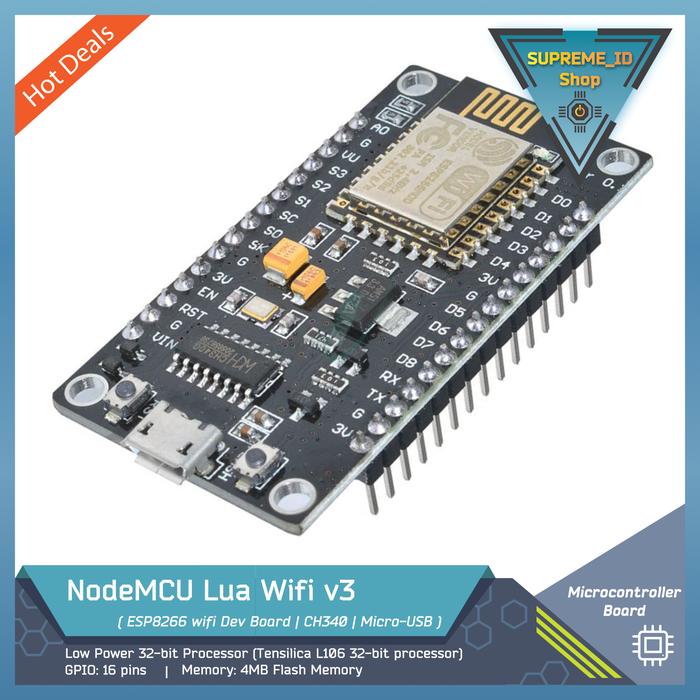

NodeMCU Lua Microcontroller ESP8266 Wifi Wireless IoT Control Dev Board | v.3 - CH340 / OEM - CP2102 / Improvement CH9102-X - CH340 |MicroUSB
Rp26.000
Pilih warna: CH340 |MicroUSB
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Com o Microcontroller
Clone Version V.3 (CH340)
Specification:
=================================
- USB Controller: CH340G
- Chip: ESP12-E
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Communication interface voltage: 3.3V.
- Antenna type: Built-in PCB antenna is available.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: 70mA (200mA MAX), Standby: 200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ~ + 125
- Drive Type: Dual high-power H-bridge driver
-- Flash size: 4MByte
OEM Version (CP2102)
Specification:
=================================
- Chip : ESP8266 12-E
- Pin I/O digital : 11 pin, support interupt, PWM, I2C, OneWire (kecuali pin D0)
- Pin I/O analog : 1 buah, 3.2V
- Compactible with Arduino
- Operating Voltage : 3.3 V
- Clock speed : 80Mhz/160Mhz
- Flash : 4M
- USB controller : Cp2102
Improvement Version (CH9102X)
Specification:
=================================
- Chip : ESP8266 ESP-12-F
- Pin I/O digital : 11 pin, support interupt, PWM, I2C, OneWire (kecuali pin D0)
- Pin I/O analog : 1 buah, 3.2V
- Compactible with Arduino
- Operating Voltage : 3.3 V
- Clock speed : 80Mhz/160Mhz
- Flash : 4M
- USB controller : CH9102X
Usage /Application:
- Robotic Control
- Wifi Communication/Controller
- IoT
- Smart Home
- Wireless Controller
- Robotic Project
Specification:
=================================
- USB Controller: CH340G
- Chip: ESP12-E
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Communication interface voltage: 3.3V.
- Antenna type: Built-in PCB antenna is available.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: 70mA (200mA MAX), Standby: 200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ~ + 125
- Drive Type: Dual high-power H-bridge driver
-- Flash size: 4MByte
OEM Version (CP2102)
Specification:
=================================
- Chip : ESP8266 12-E
- Pin I/O digital : 11 pin, support interupt, PWM, I2C, OneWire (kecuali pin D0)
- Pin I/O analog : 1 buah, 3.2V
- Compactible with Arduino
- Operating Voltage : 3.3 V
- Clock speed : 80Mhz/160Mhz
- Flash : 4M
- USB controller : Cp2102
Improvement Version (CH9102X)
Specification:
=================================
- Chip : ESP8266 ESP-12-F
- Pin I/O digital : 11 pin, support interupt, PWM, I2C, OneWire (kecuali pin D0)
- Pin I/O analog : 1 buah, 3.2V
- Compactible with Arduino
- Operating Voltage : 3.3 V
- Clock speed : 80Mhz/160Mhz
- Flash : 4M
- USB controller : CH9102X
Usage /Application:
- Robotic Control
- Wifi Communication/Controller
- IoT
- Smart Home
- Wireless Controller
- Robotic Project
