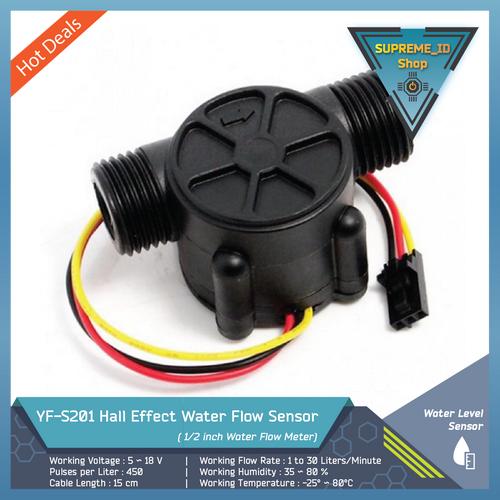

YF-S201 Hall Effect Water Flow Meter Arus Sensor 0.5" 1/2 Inch YFS201

1/2 ” (1.3cm) Water Flow Sensor-YF-S201, This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

Specification:
Sensor Type: Hall effect
Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
Max current draw: 15mA @ 5V
Output Type: 5V TTL
Working Flow Rate: 1 to 30 Liters/Minute
Working Temperature range: -25 to +80℃
Working Humidity Range: 35%-80% RH
Accuracy: ±10%
Maximum water pressure: 2.0 MPa
Output duty cycle: 50% +-10%
Output rise time: 0.04us
Output fall time: 0.18us
Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
Pulses per Liter: 450
Durability: minimum 300,000 cycles
Cable length: 15cm
1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread
Size: 6 x 4 cm

Pin Configuration:

Red IN connect the anode
Yellow OUT signal output line
Black GND connect the cathode
