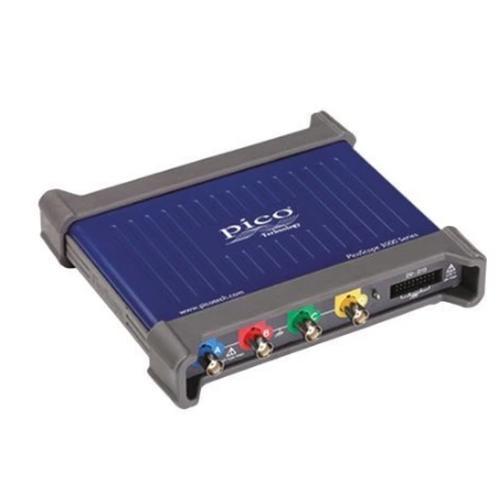

Pico Technology PicoScope 3403D USB computer oscilloscope
Rp53.000.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Elektronik
details
PicoScope 3000D series oscilloscope
The compact, USB-connected PicoScope 3000D is a complete portable test system-it can be plugged into a portable computer, making it an ideal choice for instruments that are available anytime, anywhere. It is supported by the free download of PicoScope 6 software, which provides advanced and economical solutions from system design and research to education, service and maintenance testing.
All models come with a USB 3.0 interface and are fully compatible with USB 2.0. Like all PicoScopes, the 3000D displays waveforms in an adjustable window on the user 's PC screen, creating a neat space for multiple high-resolution analog and digital tracking. Using PC networks, storage, and processing equipment to save, share, and analyze waveforms is fast and simple. Even with a fast real-time sampling rate of up to one gigabit sample per second, deep measurement buffers can achieve long captures. Even if the capture size is extremely large, hardware-accelerated data processing can maintain smooth and fast display updates.
3000D contains a variety of advanced functions as standard, proportional math channel, automatic data measurement, spectrum analysis and color persistent display mode. In addition, built-in advanced digital trigger with pulse width, window, voltage drop, channel logic, digital array and other identifiers, mask limit test and Serial decoding supports SPI, I2C, I2S, RS-232 / UART, CAN, LIN, and FlexRay protocols on up to 20 analog and digital channels, even if multiple channels are mixed simultaneously.
Product Specifications
Number of channels 4
Bandwidth 50MHz
Oscilloscope type PC-based
Series 3000
Power supply
USB interface
Minimum operating temperature 0 ° C
Width 170mm
Dimensions 190 x 170 x 40mm
Maximum operating temperature + 40 ° C
IIC interface
Height 40mm
Vertical resolution 8 bits
SPI interface
Model (P) 3403D
RS232 interface
Length 190mm
CAN interface
LIN interface
Weight 0.5kg
UART interface
PicoScope 3000D series oscilloscope
The compact, USB-connected PicoScope 3000D is a complete portable test system-it can be plugged into a portable computer, making it an ideal choice for instruments that are available anytime, anywhere. It is supported by the free download of PicoScope 6 software, which provides advanced and economical solutions from system design and research to education, service and maintenance testing.
All models come with a USB 3.0 interface and are fully compatible with USB 2.0. Like all PicoScopes, the 3000D displays waveforms in an adjustable window on the user 's PC screen, creating a neat space for multiple high-resolution analog and digital tracking. Using PC networks, storage, and processing equipment to save, share, and analyze waveforms is fast and simple. Even with a fast real-time sampling rate of up to one gigabit sample per second, deep measurement buffers can achieve long captures. Even if the capture size is extremely large, hardware-accelerated data processing can maintain smooth and fast display updates.
3000D contains a variety of advanced functions as standard, proportional math channel, automatic data measurement, spectrum analysis and color persistent display mode. In addition, built-in advanced digital trigger with pulse width, window, voltage drop, channel logic, digital array and other identifiers, mask limit test and Serial decoding supports SPI, I2C, I2S, RS-232 / UART, CAN, LIN, and FlexRay protocols on up to 20 analog and digital channels, even if multiple channels are mixed simultaneously.
Product Specifications
Number of channels 4
Bandwidth 50MHz
Oscilloscope type PC-based
Series 3000
Power supply
USB interface
Minimum operating temperature 0 ° C
Width 170mm
Dimensions 190 x 170 x 40mm
Maximum operating temperature + 40 ° C
IIC interface
Height 40mm
Vertical resolution 8 bits
SPI interface
Model (P) 3403D
RS232 interface
Length 190mm
CAN interface
LIN interface
Weight 0.5kg
UART interface
