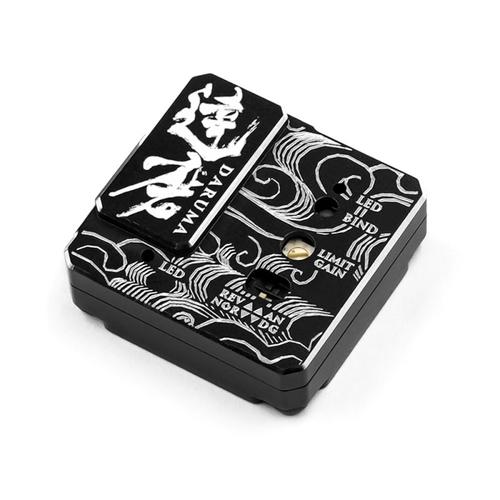

Onisiki 3-Axis Daruma Alu High Performance Gyro (ONI2804)

Onisiki 3-Axis Daruma Alu High Performance Gyro

Description :

Gyros, a new technology which helps drivers keep their car in a straight line. Be it buggies to drift cars, every car will be able to make use of this gyro to keep their car under control! CNC anodized outer shell with engraved Onisiki Logo to give extra protection for the circuit board. The gyro gain is adjustable from both the gyro and from your transmitter if you have more than 2 channels on both your receiver and transmitter.

Being a super small size means you can fit this gyro in positions where previously not possible due to the space required. The small form factor allows this gyro to be installed onto smaller scale cars as well!

New 3-axis gyro makes a even more sensitive and precise gyro input for a more predictable vehicle!

Feature :

For : Touring, Drift or F1
Material : Aluminum Case
Color : Black / White

Specification :

Weight : 12 g

Size : 25 * 26 * 10 mm

Working Voltage : 5 ~ 8.4 V

Three-Axis Gryo

Current Consumption : 20 mA / 6 V

Working Temperature : -10 °C + 50 °C

Support Input Signal : PWM (50-333Hz) / FUTABA S.BUS / SANWA SSR / SANWA SHR

Output Servo Signal: 1520uS (333Hz) / 760 uS (FUTABA SR) / SANWA SSR

Control System : PID Control System

End Point Adjustment Function : EPA

Control Signal -SBUS / PWM

Include :

Gyro (1 pc)
Adjustment Tool (1 pc)
