BETAFPV ExpressLRS ELRS Nano TX Module 2.4G

Specification

Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz)
25Hz/50Hz/150Hz/250Hz/500Hz (2.4GHz)

RF output power: 100mW/250mW/500mW
Frequency bands (Nano RF Module 2.4G version): 2.4GHz ISM
Frequency bands (Nano RF Module 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V~12V
USB port: Type-C

Diagram

BETAFPV Nano RF module is compatible with radio transmitter which has the nano module bay (AKA lite module bay, e.g. Frsky Taranis X-Lite, Frsky Taranis X9D Lite, TBS Tango 2).

The RF TX module output power and LED indication as shown below.
LED Color RF output power
Blue 100mW
Purple 250mW
Red 500mW

BETAFPV ELRS Nano TX module user manual download.

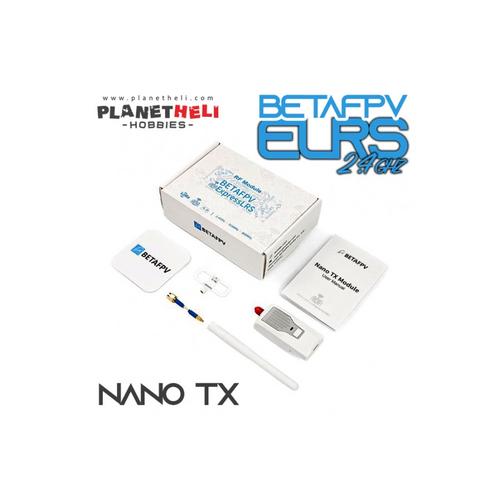

Package

1 * BETAFPV ELRS Nano TX module
1 * BETAFPV Moxon antenna
1 * Nano TX module user manual
