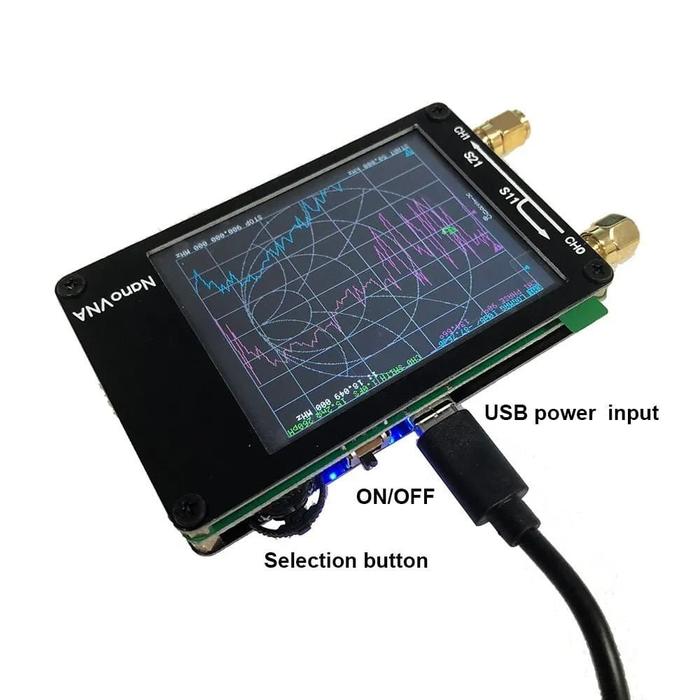

NanoVNA Vector Network Analyzer Antenna Nano VNA Built in Battery
Terjual 272
rating 4.8 (168 ulasan)
Diskusi (33)
Rp559.000
Detail
- Kondisi: Baru
- Berat: 200 Gram
- Kategori: Walkie Talkie
- Etalase: Measurement Tools
NanoVNA-H (50KHz - 1.5GHz)
PCB: 54mm x 85.5mm x 11mm
Measurement frequency: 50KHz - 1.5GHz
RF output: -13dbm (maximum -9dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-600MHz), 50dB (600M-900MHz) enable extended firmware
Port SWR: less than 1.1
Display: 2.8 inch TFT (320 x 240)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 600mAh battery, maximum charging current 0.8A
Number of scanningoints: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart.
Package includes:
NanoVNA-H host (with 600mAh battery) x 1
USB Type-C data cable x1
SMA male to male RG174 RF cable 30cm x2
SMA simple calibration kit x3 (open, short, load)
SMA female to female connector x1
PCB: 54mm x 85.5mm x 11mm
Measurement frequency: 50KHz - 1.5GHz
RF output: -13dbm (maximum -9dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-600MHz), 50dB (600M-900MHz) enable extended firmware
Port SWR: less than 1.1
Display: 2.8 inch TFT (320 x 240)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 600mAh battery, maximum charging current 0.8A
Number of scanningoints: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart.
Package includes:
NanoVNA-H host (with 600mAh battery) x 1
USB Type-C data cable x1
SMA male to male RG174 RF cable 30cm x2
SMA simple calibration kit x3 (open, short, load)
SMA female to female connector x1
