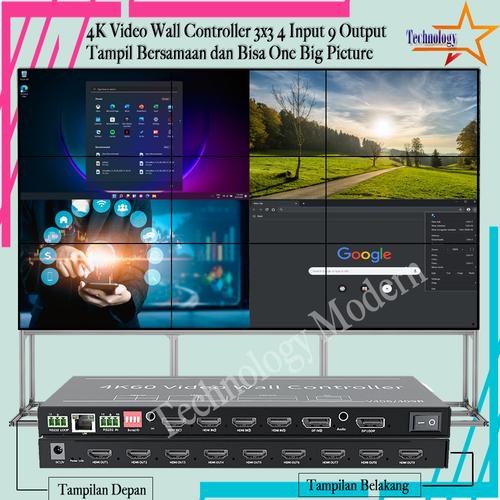

HDMI Videowall Controller 3x3 (4 Input - 9 Output) - Support 4K UHD

-- FREE SOFTWARE APLIKASI --

Product Features:

1. It is a very clear rotating splicing processor. Support 4 HDMI inputs (1 4K@60Hz, 3 4K@30Hz), 1 DP input (4K@60Hz), 9 HDMI outputs (1080p@60Hz), 1 DP loop out.
2. A single device, 5 in and 9 out (compatible with 1 in and 9 out), can be combined with a variety of splicing modes: horizontal screen / vertical screen / field font, and supports parallel use.
3. It supports 4 windows on the whole screen, and supports multiple window modes (single-screen, dual-screen picture-in-picture, dual-screen picture-by-picture, four-screen split), and can assign input source channels to the windowing screen arbitrarily.
4. The input supports 3840x2160@60Hz, which is backward compatible. The maximum single output channel supports 1920x1080@60Hz (the output supports customized standard resolution).
5. The input supports 90° rotation of the entire screen (only supported in single-screen mode), and the output supports 180° rotation of the first line (only supported when the stitching mode is two lines).
6. No stretching, no deformation, no need to compress the input source, and the picture is clear.
7. Support single display mode (1x1).
8. Support infrared remote control and serial RS232 control.
9. Low power consumption design, internal conduction heat dissipation, no external heat dissipation measures, and extremely high reliability.
10.Support computers, Android boxes, game consoles and other devices as input sources.
11.Using engineering-level programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
