8Mp 4K 600X Zoom Rtmp Ptz Poe Ip Kamera Mendukung Ivm4200 P2P Onvif Mx415 H.265 Audio Dua Arah

8Mp 4K 600X Zoom Rtmp Ptz Poe Ip Camera Support Ivm4200 P2P Onvif Mx415 H.265 Two Way Audio

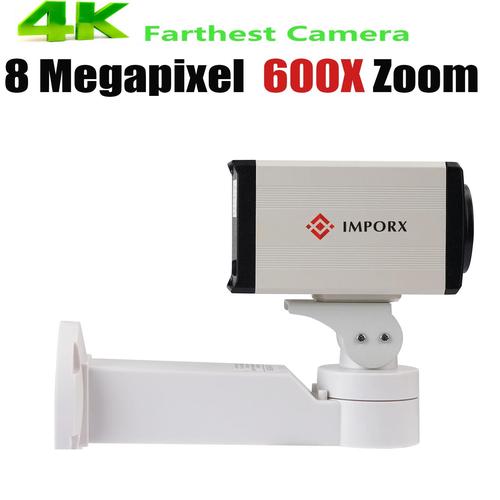

4K 8Mp Ip Camera Adopts Highly Integrated
Mstar338Q+Imx415 Processor, Extremely Low Power Consumption And Strong
Stability; Supports H.265 Compression Algorithm To Ensure Image Quality While
Effectively Reducing Network Bandwidth Occupation; Powerful Network Function,
Support Standard Support Hikvision Protocol, And Compatible With Ivms-4200,
Support Rtsp, Rtmp And Other Protocols, Support Alarm Picture Upload Ftp
Server, Alarm Picture To E-Mail, Support Mobile Phone Remote Monitoring;
High
Sensitivity, High Signal-To-Noise Cmos Image Sensor
Using The
Mstar338Q Processing Chip+ Imx415 Cmos
The
Highest Pixel Is Up To 8Mp, And The Highest Resolution Is Up To 8Mp (3840*2160)
H.265
Compression Algorithm, Effectively Reducing Network Bandwidth, Supporting Dual
Stream, Supporting Mobile Phone Monitoring
Support
Humanoid Recognition To Trigger Sd Card Recording, Sd Card Capture, Voice
Alarm, Message Push, Email Alarm And Other Functions.
Support
Fog Function, Support Wdr, Hdr. Support Strong Light Suppression Function.
Support
Humanoid Recognition And Humanoid Alarm
Support Multiple
Network Protocols: Tcp/Ip, Http, Tcp, Icmp, Udp, Arp, Igmp, Smtp, Ftp, Dhcp,
Dns, Ddns, Ntp, Upnp, Rtsp, Rtmp,Etc.
Support
Onvif Protocol,Hikvision Protocol
Support
For Manufacturer Dynamic Domain Name And Third-Party Dynamic Domain Name
Resolution
Support
Alarm Picture Sending E-Mail
Support
Alarm Picture Upload Ftp Server
Support
Alarm Sound Outputs
Support
Timing Capture Pictures To Ftp Server
Support
Static Ip, Also Support Dynamic Ip (Dhcp)
Support
P2P Plug And Play
Support
Ie, Google, Firefox Browser
Supports
Up To 6 Users To Browse At The Same Time (3 Users Per Stream)
Provide
Motion Detection (Area, Sensitivity Can Be Set) Alarm Function
Support
Upnp Automatic Port Mapping
Support
Micro Sd Card Function, Support Up To 256Gb Micro Sd Card
Support
Pc Client To Download Sd Card Video
Support
Mobile Phone Download And Playback Sd Card Recording


* This Is
A Camera, Please Use A Computer Or Nvr Connection To Use It. Of
Course, It Also Supports Mobile App Connection, But The Mobile App Can Only
Realize Some Simple Functions.


Model: Imp-4K8Mp-600X
Operating System
Embedded Linux
Main Processor

Mstar338Q
Image Sensor
Sony Imx415 1/2.8" Ultra Low Illumination Cmos Sensor
Day And Night Mode
Support
Compression Standard
Compression Standard
Video Compression Algorithm Supports H.265, H.264 High
Profile, H.264 Main Profile And H.264 Baseline
Audio Compression Algorithm
G.726/G.711
Compressed Transport Stream
512Kbps-12288Bps, Can Be Customized,
Images
Maximum Image Size
8Mp (3840*2160)
Sharpness



Special Function
First Stream:4K 8Mp (3840*2160),3072*1728ϼ�2592*1944ϼ�2560*1440ϼ�2304*1296ϼ�1080P,720P

Support Fog Function, Support Wdr, Hdr. Support Strong Light Suppression
Function.
Second Stream＊720*480ϼ�vga,640*360,480*360,Cif
Video Frame Rate
8Mp 20Fps,3072*1728ϼ�2592*1944ϼ�2560*1440ϼ�2304*1296ϼ�1080P,720P�30Fps
Character Overlay
Support Osd Name,Time And Date Information Overlay
Image Settings
Brightness, Contrast, Saturation, Exposure, Up And Down
Reverse, Left And Right Mirroring Adjustable
Network�Function
Storage Function
Supports Up To 256G Micro Sd Card Storage And Supports
Scheduled Video Storage
Motion Detection
Four Independent Detection Areas Can Be Set (Sensitivity 1-100
Can Be Set)
Alarm Linkage
Alarm Sends The Picture To The Specified Mailbox; The Alarm
Uploads The Picture And The Video Is Uploaded To The Ftp Server;
Network Protocol
Supports Tcp/Ip, Http, Tcp, Icmp, Udp, Arp, Igmp, Smtp, Ftp,
Dhcp, Dns, Ddns, Ntp, Upnp, Rtsp，rtmp.
Access Protocol
Supports Onvif 2.4 Protocol
Interface
Audio Input
Support External Mic
Audio Output
External Speaker
Lan Interface
Rj45 10Base-T/100Base-Tx,


Ir Night Distance
Support
Len
600X Zoom ,(60X Optics Zoom X 10X
Digital Zoom,Lens :3.5-210Mm)
Waterproof Level
Indoor
About Rtsp:
The Rtsp Url Format For Aj Series Cameras Is As Follows (Assuming The Ipc Ip Is 192.168.0.123):
Main Stream: Rtsp://Admin:123456@192.168.0.123/Stream0
Substream: Rtsp://Admin:123456@192.168.0.123/Stream1
For The Rtsp Url Above, If Audio Is Enabled, The Stream Will Contain Both Video And Audio.
If You Only Need Video Or Audio Data, Use The Following Url:
Main Stream Pure Video: Rtsp://Admin:123456@192.168.0.123/Video1
Substream Pure Video: Rtsp://Admin:123456@192.168.0.123/Video2
Audio Only: Rtsp://Admin:123456@192.168.0.123/Audiothis Is The Download Link Of The Camera Computer And Mobile Client:Http://
